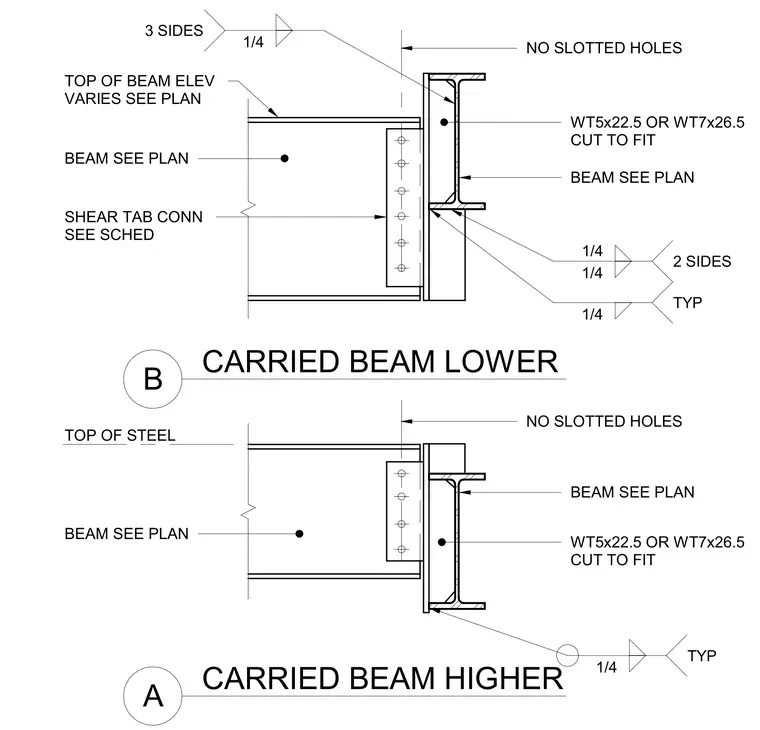

An offset beam connection utilizes a shear tab welded to a WT5x22.5 or WT7x26.5 tee section cut to fit the supporting beam. The assembly features unslotted bolt holes and specific quarter-inch fillet welds on two or three sides as indicated. The top of the beam elevation varies per plan, including both higher and lower carried beam configurations framing into the main structural member.
TOP OF BEAM ELEV VARIES SEE PLAN NO SLOTTED HOLES SHEAR TAB CONN SEE SCHED TOP OF STEEL WT5x22.5 OR WT7x26.5 CUT TO FIT BEAM SEE PLAN WT5x22.5 OR WT7x26.5 CUT TO FIT BEAM SEE PLAN BEAM SEE PLAN BEAM SEE PLAN 1/4 3 SIDES 1/4 TYP 1/4 1/4 2 SIDES 1/4 TYP CARRIED BEAM HIGHER A CARRIED BEAM LOWER B NO SLOTTED HOLES
