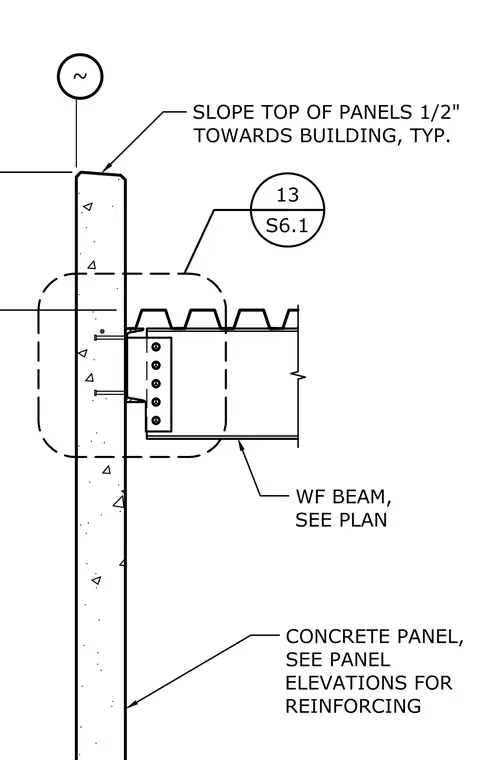

A wide flange beam connects to a concrete wall panel using a shear tab with five bolts. The concrete panel has a sloped top surface, falling one-half inch towards the building typical. A metal deck bears across the top flange of the beam. The concrete panel includes reinforcing as specified in panel elevations.
