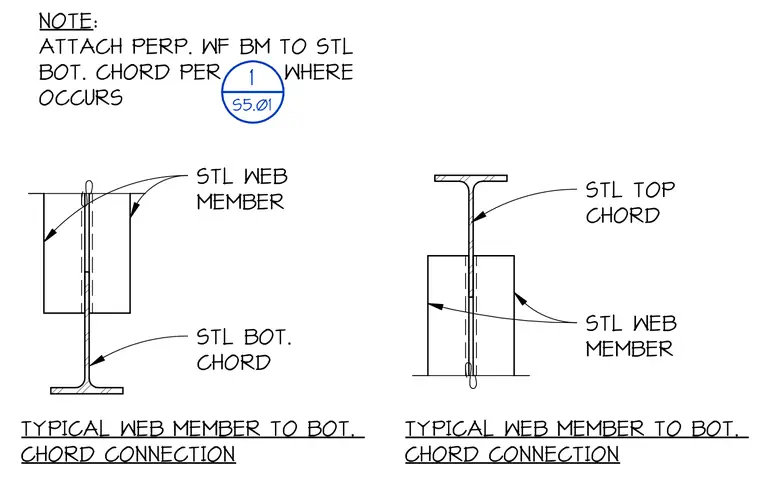

A steel web member intersects a steel bottom chord or steel top chord as specified on the structural framing plans. Perpendicular wide-flange beams attach to the steel bottom chord according to detail reference 1 on sheet S5.01 where applicable.
STL WEB MEMBER STL BOT. CHORD NOTE: ATTACH PERP. WF BM TO STL BOT. CHORD PER WHERE OCCURS 1 S5.01 TYPICAL WEB MEMBER TO BOT. CHORD CONNECTION STL WEB MEMBER STL TOP CHORD TYPICAL WEB MEMBER TO BOT. CHORD CONNECTION
