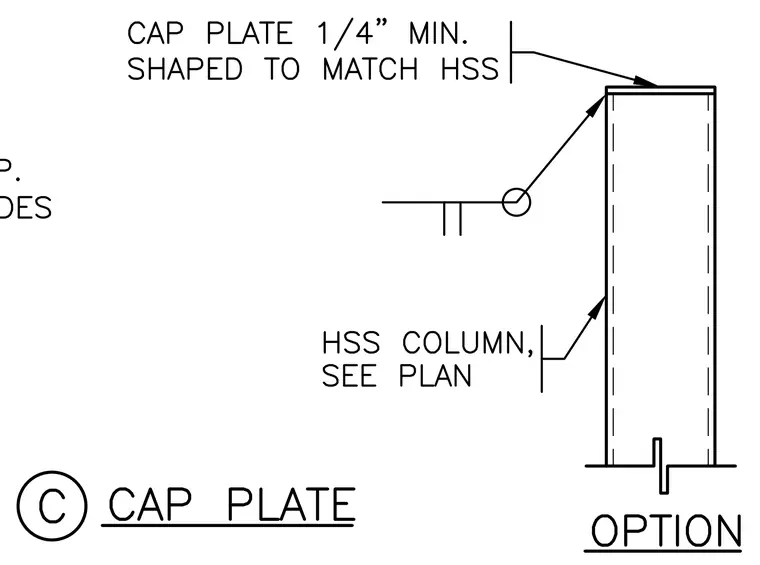

A hollow structural section column receives a one-quarter-inch minimum steel cap plate shaped to match the profile of the column. The plate is secured with welds around the perimeter.
