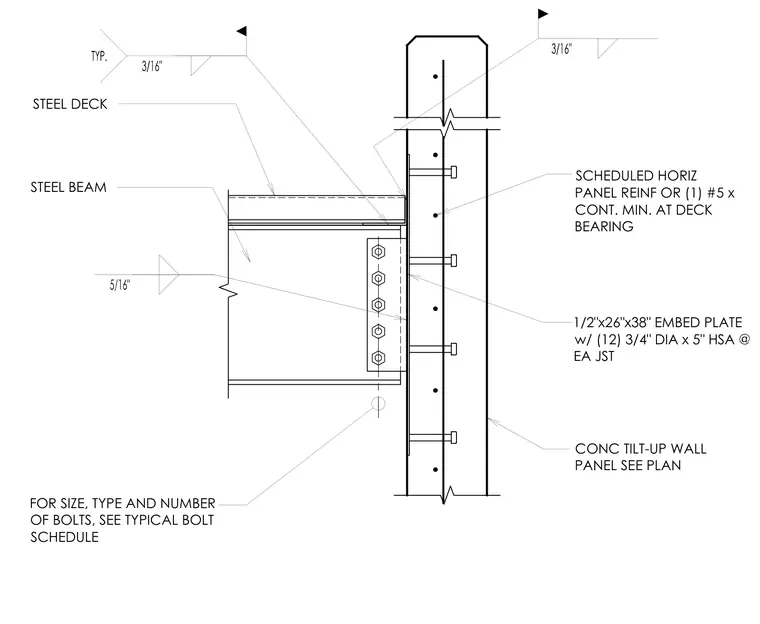

A structural steel beam frames into a concrete tilt-up wall panel utilizing a half-inch by twenty-six-inch by thirty-eight-inch embed plate secured with twelve three-quarter-inch diameter by five-inch headed stud anchors. The steel deck bears directly atop the beam flange with three-sixteenth-inch fillet welds. A five-sixteenth-inch fillet weld connects the beam web to the plate assembly. Horizontal panel reinforcement consists of scheduled bars or a continuous number five reinforcing bar placed at the deck bearing. Bolt sizes, types, and counts are specified per the typical bolt schedule.
STEEL BEAM STEEL DECK CONC TILT-UP WALL PANEL SEE PLAN 1/2"x26"x38" EMBED PLATE w/ (12) 3/4" DIA x 5" HSA @ EA JST SCHEDULED HORIZ PANEL REINF OR (1) #5 x CONT. MIN. AT DECK BEARING FOR SIZE, TYPE AND NUMBER OF BOLTS, SEE TYPICAL BOLT SCHEDULE
