Structural · S-EX5FC

Slip Connection Between Concrete Wall and P-T Slab

Materials

Concrete Reinforced Concrete Steel

Elements

Columns Beams Walls Shear Walls Floors / Slabs Arches Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development Expansion / Slip Connection

About this detail

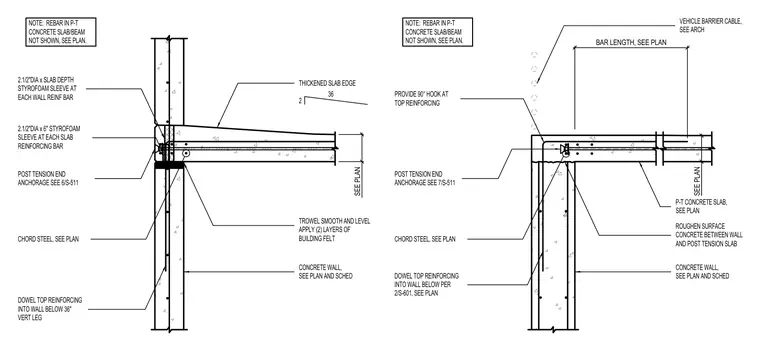

A slip connection occurs between a concrete wall and a post-tensioned concrete slab. The assembly bears on a trowel-smooth and leveled concrete surface separated by two layers of building felt. Wall reinforcing bars and slab reinforcing bars pass through two-and-a-half-inch diameter by slab-depth and six-inch styrofoam sleeves respectively. Post-tension end anchorages are coordinated per related sheets, with chord steel and dowel top reinforcing tied into the wall below. A thickened slab edge is detailed at the connection alongside provisions for vehicle barrier cables where applicable.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
