A rectangular steel base plate is welded beneath a wide flange column with anchor rods positioned outside the column profile. Edge distances vary based on anchor rod diameters, requiring two and one-half inches for up to one and one-half inch diameter rods, three and one-half inches for up to two inch diameter rods, and four inches for up to two and one-half inch diameter rods. The anchor rod pattern is symmetrically distributed around the column centerlines.

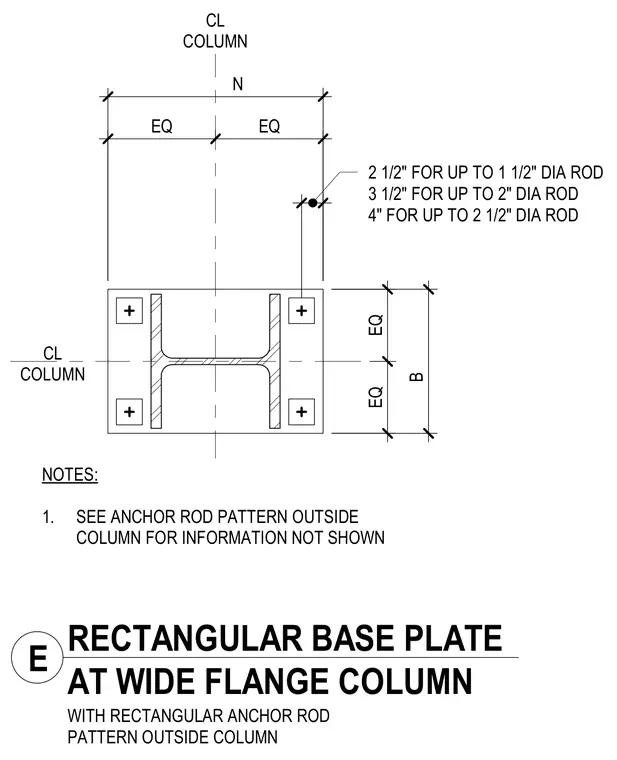

WITH RECTANGULAR ANCHOR ROD PATTERN OUTSIDE COLUMN CL COLUMN CL COLUMN N EQ EQ 2 1/2" FOR UP TO 1 1/2" DIA ROD 3 1/2" FOR UP TO 2" DIA ROD 4" FOR UP TO 2 1/2" DIA ROD B EQ EQ NOTES: 1. SEE ANCHOR ROD PATTERN OUTSIDE COLUMN FOR INFORMATION NOT SHOWN E RECTANGULAR BASE PLATE AT WIDE FLANGE COLUMN
