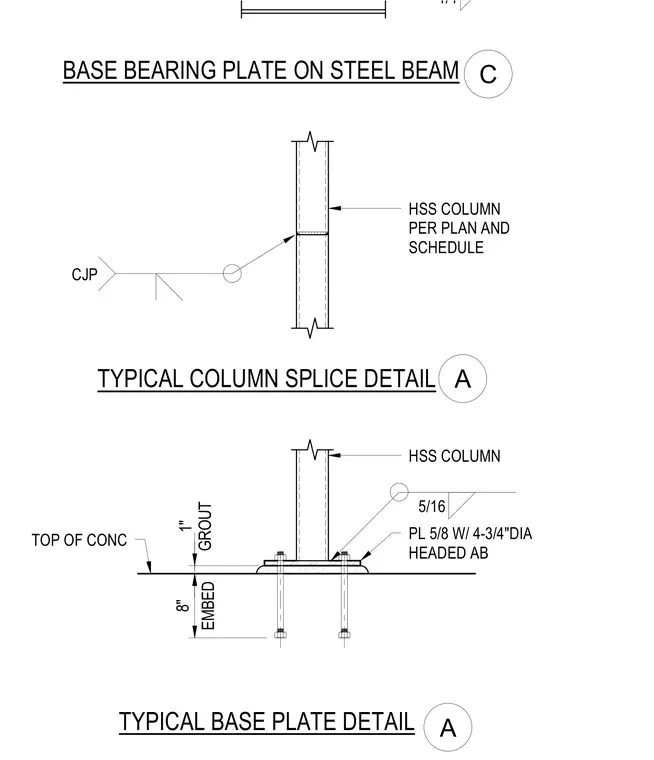

An HSS column bears on a 5/8-inch thick base plate anchored to a concrete foundation with four 3/4-inch diameter headed anchor bolts embedded 8 inches. A 1-inch grout layer sits beneath the base plate above the top of concrete. The column is welded to the base plate using a 5/16-inch fillet weld.
HSS COLUMN PER PLAN AND SCHEDULE HSS COLUMN PL 5/8 W/ 4-3/4"DIA HEADED AB TOP OF CONC BASE BEARING PLATE ON STEEL BEAM TYPICAL COLUMN SPLICE DETAIL TYPICAL BASE PLATE DETAIL EMBED 8" A 5/16 A CJP C 1/4 TYP GROUT 1"
