Structural · S-EX2S4

HSS Girt Flyby at Column Connection

Materials

Steel

Elements

Beams Connections / Plates

Connections

HSS Connection Bolted Connection

About this detail

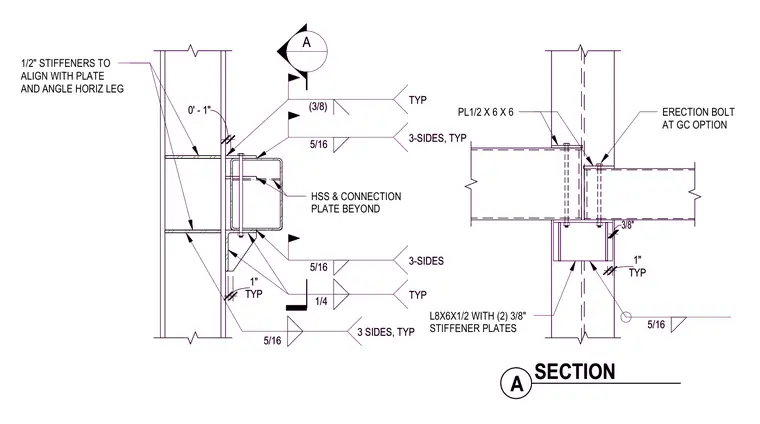

An HSS girt passes by a structural steel column with differing member sizes, supported by an L8x6x1/2 angle with two 3/8-inch stiffener plates welded with 5/16-inch welds on three sides. A 1/2-inch by 6-inch by 6-inch connection plate is bolted using erection bolts at the general contractor's option, with field welds specified at 5/16 inch and 1/4 inch typical. Internal 1/2-inch stiffeners align with the plate and angle horizontal leg inside the column.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
