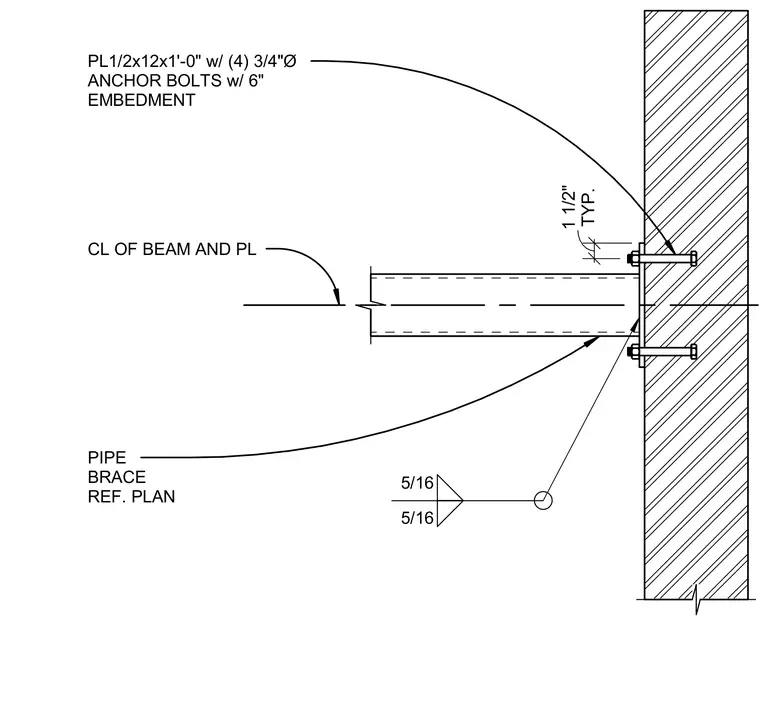

A structural pipe brace connects to a concrete masonry unit wall using a half-inch by twelve-inch by one-foot-zero-inch steel plate. The plate secures to the masonry with four three-quarter-inch-diameter anchor bolts featuring six-inch embedment. The pipe member connects to the plate with five-sixteenths-inch fillet welds typical at the joint, positioned one and one-half inches typical from the centerline of the beam and plate.
PIPE BRACE REF. PLAN 5/16 5/16 TYP. 1 1/2" CL OF BEAM AND PL PL1/2x12x1'-0" w/ (4) 3/4"Ø ANCHOR BOLTS w/ 6" EMBEDMENT
