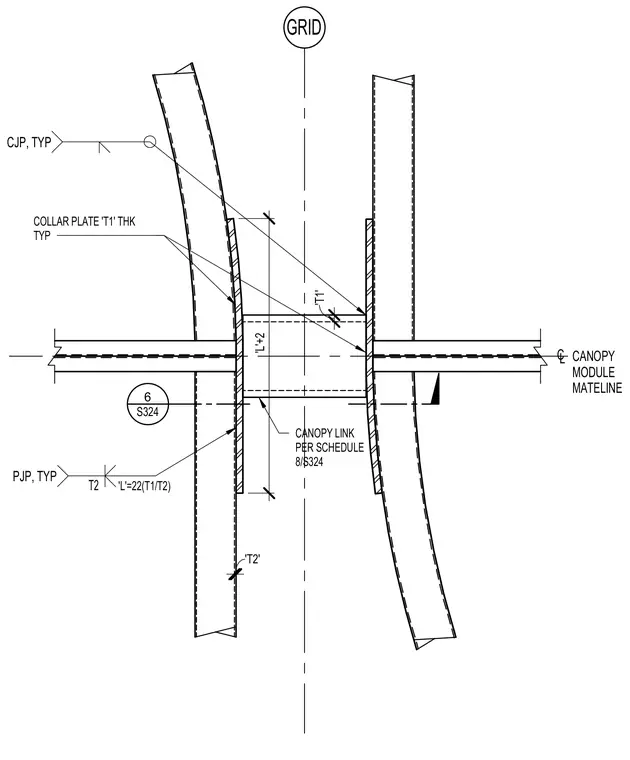

A canopy module mateline connection centers on a grid line, joining two canopy members using collar plates of thickness T1 typical, connected with complete joint penetration welds typically. A canopy link per schedule connects between the members, detailed with partial joint penetration welds labeled T2 typical. Dimensions indicate a link length of L+2 and a plate dimension relationship of L=22(T1/T2).
GRID C L CANOPY MODULE MATELINE CANOPY LINK PER SCHEDULE 8/S324 6 S324 COLLAR PLATE 'T1' THK TYP 'L'+2 'T1' CJP, TYP T2 PJP, TYP 'L'=22(T1/T2) 'T2'
