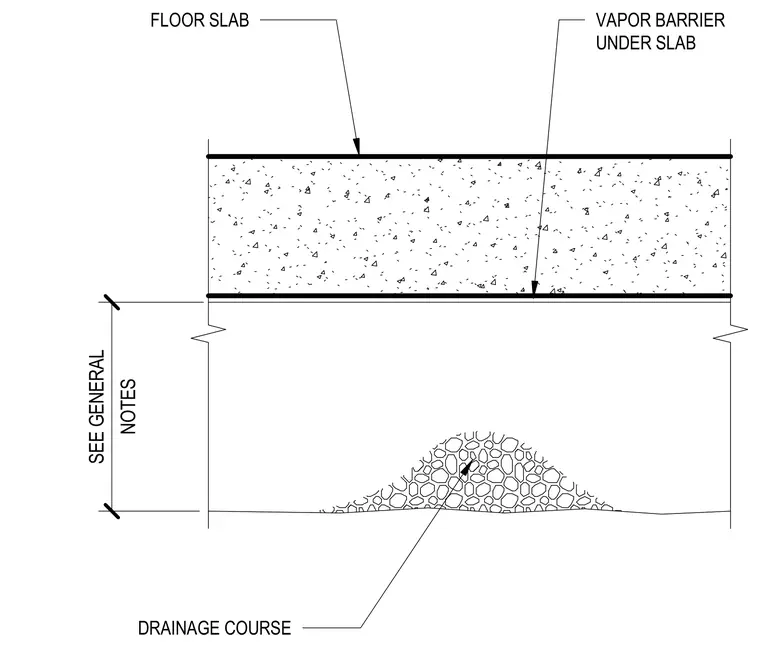

A concrete floor slab bears directly on a vapor barrier placed over a compacted drainage course. Subgrade preparation and layer thicknesses are sized per general notes. The vapor barrier prevents moisture migration from the ground into the slab.
