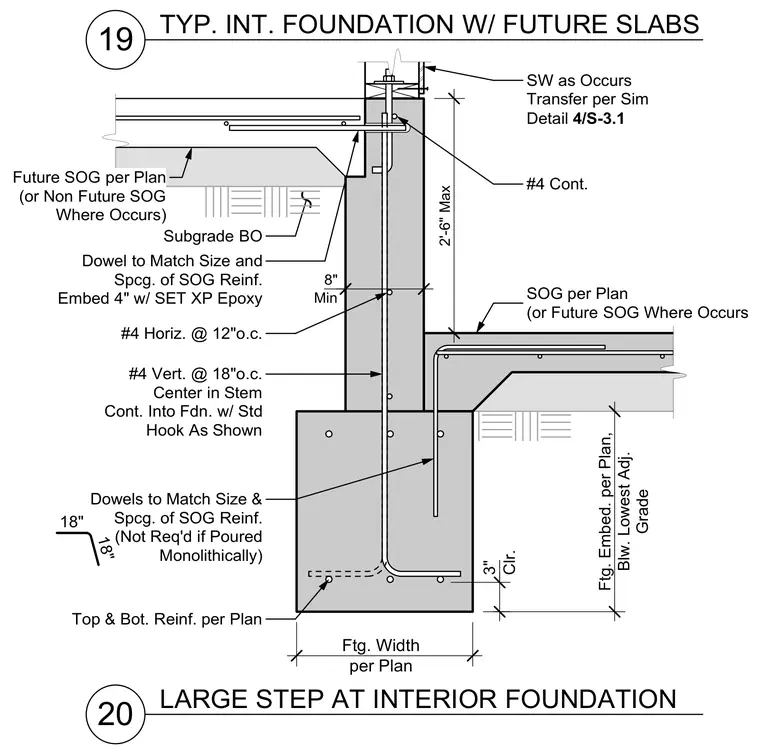

An interior concrete foundation wall bears on a continuous concrete footing with top and bottom reinforcing sized per plan and a three-inch clear cover. The stem wall is reinforced vertically with number four bars at eighteen inches on center centered in the stem and continuing into the foundation with a standard hook, and horizontally with number four bars at twelve inches on center. Slabs-on-grade on either side of the stem wall are positioned at varying elevations, with dowels matching the size and spacing of slab-on-grade reinforcing embedded four inches into the concrete with SET XP epoxy when not poured monolithically. A sheer wall transfer occurs above per similar detail 4/S-3.1, maintaining an eight-inch minimum thickness below the lowest adjacent grade.
TYP. INT. FOUNDATION W/ FUTURE SLABS 19 20 SOG per Plan (or Future SOG Where Occurs Top & Bot. Reinf. per Plan 3" Clr. Dowels to Match Size & Spcg. of SOG Reinf. (Not Req'd if Poured Monolithically) 18" 18" SW as Occurs Transfer per Sim Detail 4/S-3.1 LARGE STEP AT INTERIOR FOUNDATION Subgrade BO #4 Cont. Dowel to Match Size and Spcg. of SOG Reinf. Embed 4" w/ SET XP Epoxy Ftg. Width per Plan Ftg. Embed. per Plan, Blw. Lowest Adj. Grade 8" Min #4 Vert. @ 18"o.c. Center in Stem Cont. Into Fdn. w/ Std Hook As Shown #4 Horiz. @ 12"o.c. 2'-6" Max Future SOG per Plan (or Non Future SOG Where Occurs)
