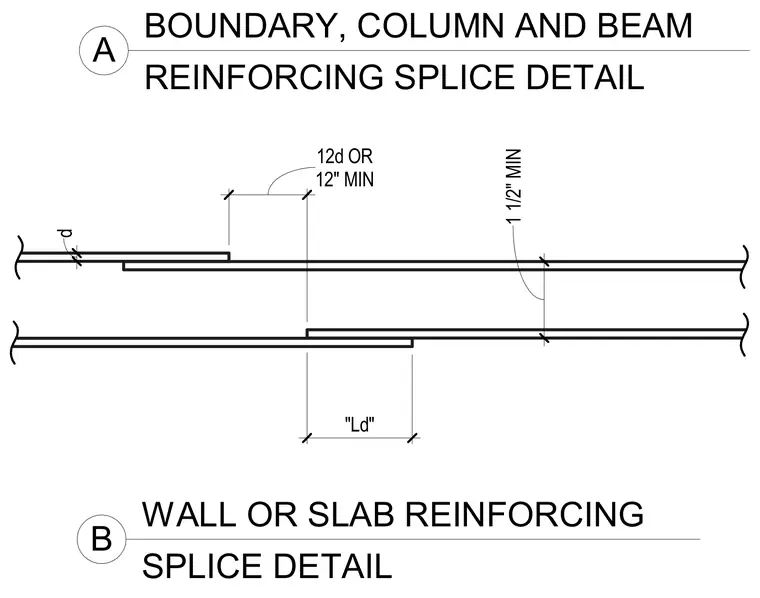

Reinforcing bars lap splice together with a minimum development length designated as Ld, offset by twelve bar diameters or twelve inches minimum. Concrete clear cover maintains a minimum of one and one-half inches. The overlapping bars maintain a diameter spacing distance of d.
BOUNDARY, COLUMN AND BEAM REINFORCING SPLICE DETAIL SPLICE DETAIL WALL OR SLAB REINFORCING B A 12" MIN 12d OR d 1 1/2" MIN "Ld"
