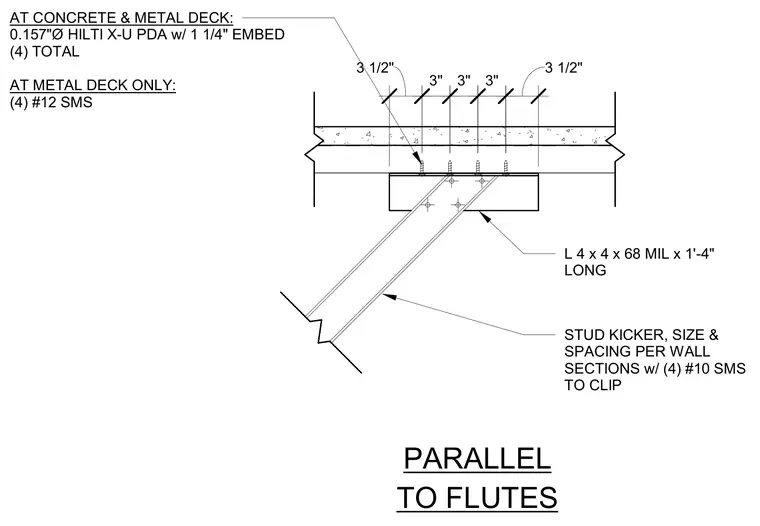

A cold-formed steel stud kicker is braced against a concrete-filled metal deck using an L 4 x 4 x 68 mil clip angle measuring 1'-4" long. The clip angle is fastened to the concrete and metal deck using four 0.157" diameter Hilti X-U powder-actuated fasteners with a 1 1/4" embedment, or four #12 sheet metal screws when attached to metal deck only. The stud kicker framing member is connected to the clip angle with four #10 sheet metal screws, sized and spaced per wall sections.
AT CONCRETE & METAL DECK: 0.157"Ø HILTI X-U PDA w/ 1 1/4" EMBED (4) TOTAL AT METAL DECK ONLY: (4) #12 SMS PARALLEL TO FLUTES 3 1/2" 3" 3" 3" 3 1/2" L 4 x 4 x 68 MIL x 1'-4" LONG STUD KICKER, SIZE & SPACING PER WALL SECTIONS w/ (4) #10 SMS TO CLIP
