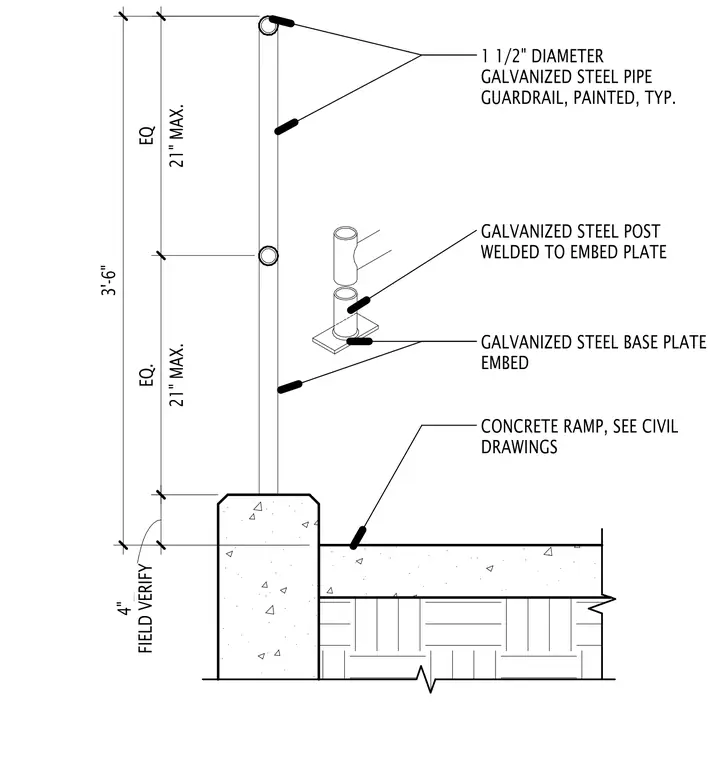

A 1 1/2-inch diameter painted galvanized steel pipe guardrail is supported by a 4-inch galvanized steel post welded to an embed plate. The post features a galvanized steel base plate embed secured into a concrete ramp, with dimensions field verified. Vertical spacing includes twenty-one inches maximum equal intervals up to a total height of 3 feet 6 inches. The concrete ramp details are coordinated with the civil drawings.
3'-6" 21" MAX. EQ 21" MAX. EQ. CONCRETE RAMP, SEE CIVIL DRAWINGS 1 1/2" DIAMETER GALVANIZED STEEL PIPE GUARDRAIL, PAINTED, TYP. FIELD VERIFY 4" GALVANIZED STEEL POST WELDED TO EMBED PLATE GALVANIZED STEEL BASE PLATE EMBED
