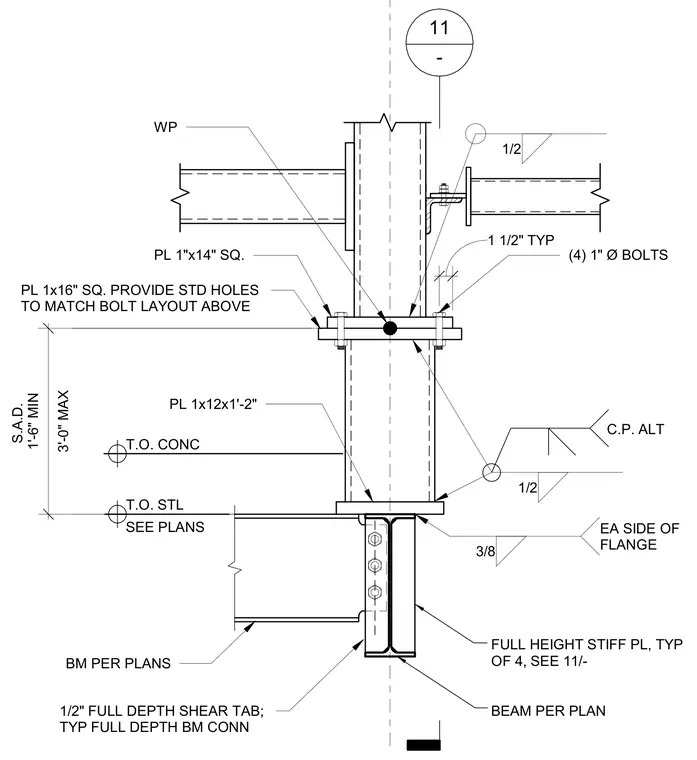

A hollow structural section post connects to supporting structural members using square plates and four one-inch diameter bolts. A full-height stiffener plate is welded to the assembly with a three-eighths-inch fillet weld on each side of the flange. A one-half-inch full-depth shear tab provides the typical beam connection with standard holes matching the bolt layout. The assembly interfaces with structural steel beams sized per plans.
1/2" FULL DEPTH SHEAR TAB; TYP FULL DEPTH BM CONN T.O. STL SEE PLANS T.O. CONC WP FULL HEIGHT STIFF PL, TYP OF 4, SEE 11/- C.P. ALT BM PER PLANS 11 - 3/8 EA SIDE OF FLANGE PL 1x12x1'-2" PL 1"x14" SQ. PL 1x16" SQ. PROVIDE STD HOLES TO MATCH BOLT LAYOUT ABOVE (4) 1" Ø BOLTS BEAM PER PLAN 3'-0" MAX S.A.D. 1'-6" MIN 1 1/2" TYP 1/2 1/2
