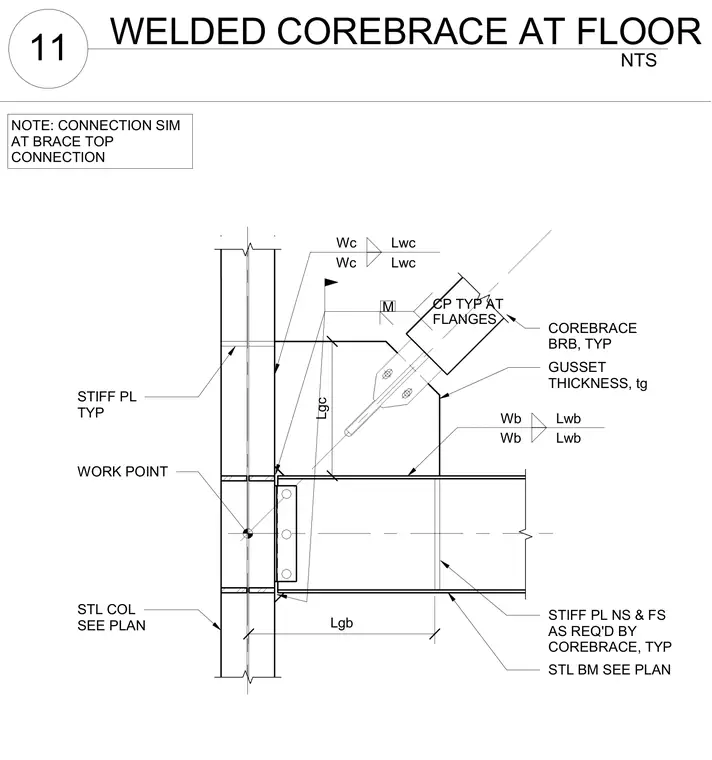

A CoreBrace buckling-restrained brace connects to a structural steel column and steel beam through a gusset plate and welded connections at the floor level. Stiffener plates are welded near the column flanges and along the steel beam as required by the brace manufacturer. The gusset plate thickness and specific weld sizes are designated per engineering design. A work point is established at the intersection of the framing members. Similar connection details apply at the brace top connection.
Wb Lwb Wb Lwb CP TYP AT FLANGES WORK POINT STIFF PL TYP COREBRACE BRB, TYP GUSSET THICKNESS, tg STIFF PL NS & FS AS REQ'D BY COREBRACE, TYP Lgb Lgc STL BM SEE PLAN Wc Lwc Wc Lwc STL COL SEE PLAN NOTE: CONNECTION SIM AT BRACE TOP CONNECTION M NTS 11 WELDED COREBRACE AT FLOOR
