An L6x4x3/8 long-leg-vertical structural angle brace is connected perpendicular to a metal deck using two three-quarter-inch diameter expansion anchors with three-and-a-quarter-inch embedment spaced at twelve inches on center. The brace is attached to a three-eighths-inch thick plate measuring four inches by four inches with three-sixteenths-inch fillet welds featuring one-inch returns. An L3x3x1/4 angle with a maximum length of eight feet serves as part of the assembly and is welded with three-sixteenths-inch fillet welds.

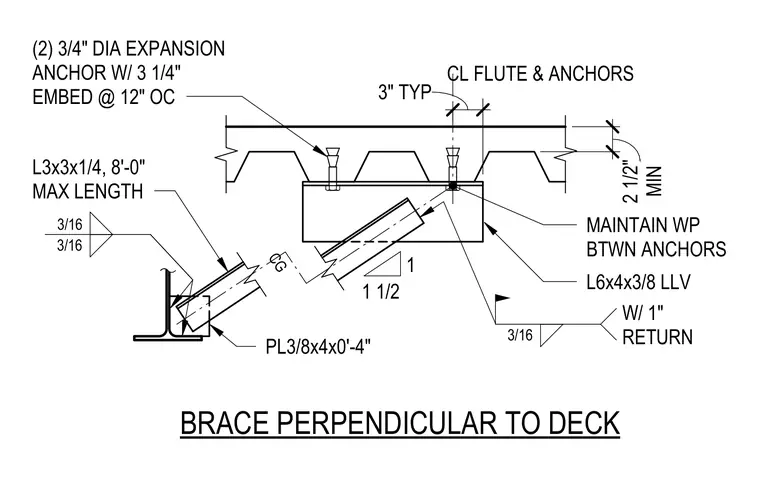

3" TYP W/ 1" RETURN 3/16 L3x3x1/4, 8'-0" MAX LENGTH L6x4x3/8 LLV BRACE PERPENDICULAR TO DECK 1 1/2 CL FLUTE & ANCHORS MAINTAIN WP BTWN ANCHORS 1 3/16 3/16 PL3/8x4x0'-4" CG 2 1/2" 2 1/2" MIN (2) 3/4" DIA EXPANSION ANCHOR W/ 3 1/4" EMBED @ 12" OC
