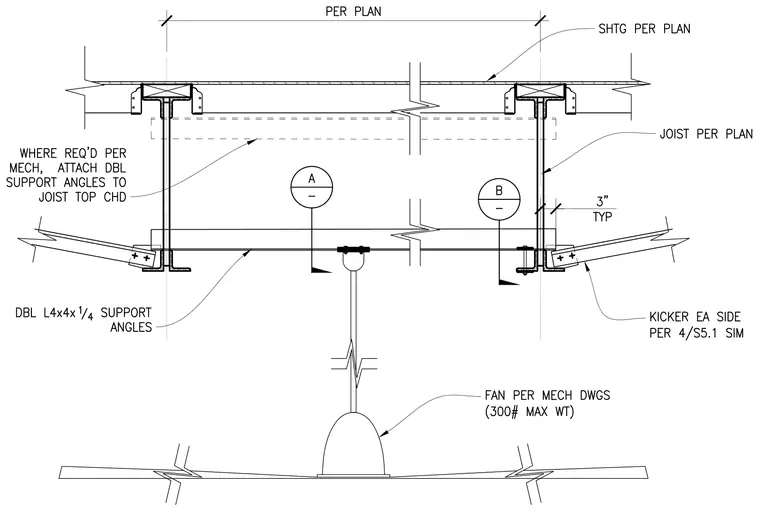

Double L4x4x1/4 support angles span below the joists per plan to support a mechanical fan with a three hundred pound maximum weight. Kickers are attached to each side per plan and similar details. Where required per mechanical, double support angles are attached to the joist top chord. Sheating and joists are installed per plan.
