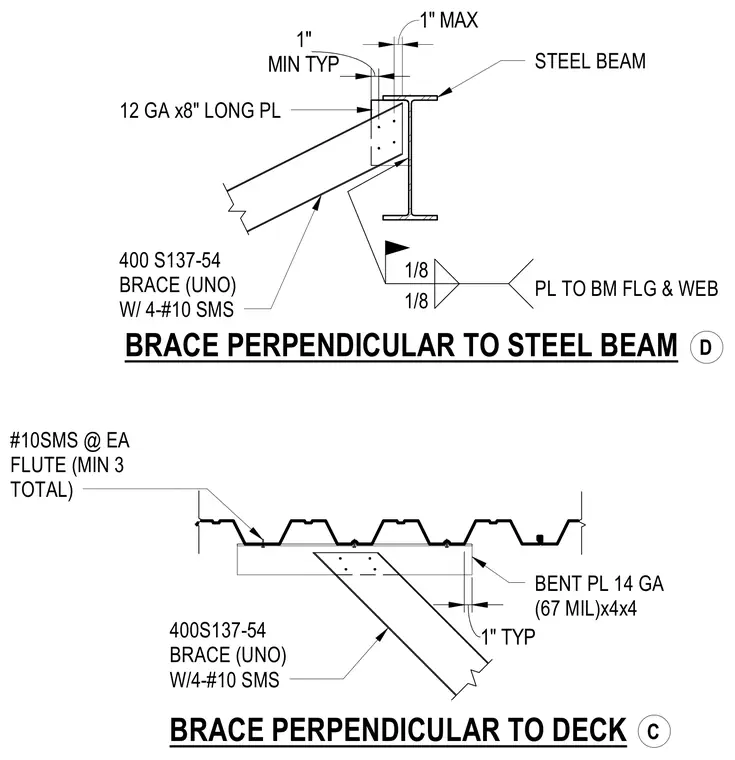

A 400S137-54 cold-formed steel brace connects perpendicularly to a structural steel beam using a 1/8-inch plate welded to the beam flange and web with 1/8-inch fillet welds. The brace fastens to the plate with four number 10 self-tapping sheet metal screws. A second detail shows the brace connecting to a metal deck via a 14-gauge bent plate secured with number 10 self-tapping sheet metal screws at each flute with a minimum of three total.
1/8 PL TO BM FLG & WEB 12 GA x8" LONG PL C D 1" TYP 400 S137-54 BRACE (UNO) W/ 4-#10 SMS 400S137-54 BRACE (UNO) W/4-#10 SMS 1/8 BRACE PERPENDICULAR TO STEEL BEAM BRACE PERPENDICULAR TO DECK MIN TYP 1" STEEL BEAM BENT PL 14 GA (67 MIL)x4x4 1" MAX #10SMS @ EA FLUTE (MIN 3 TOTAL)
