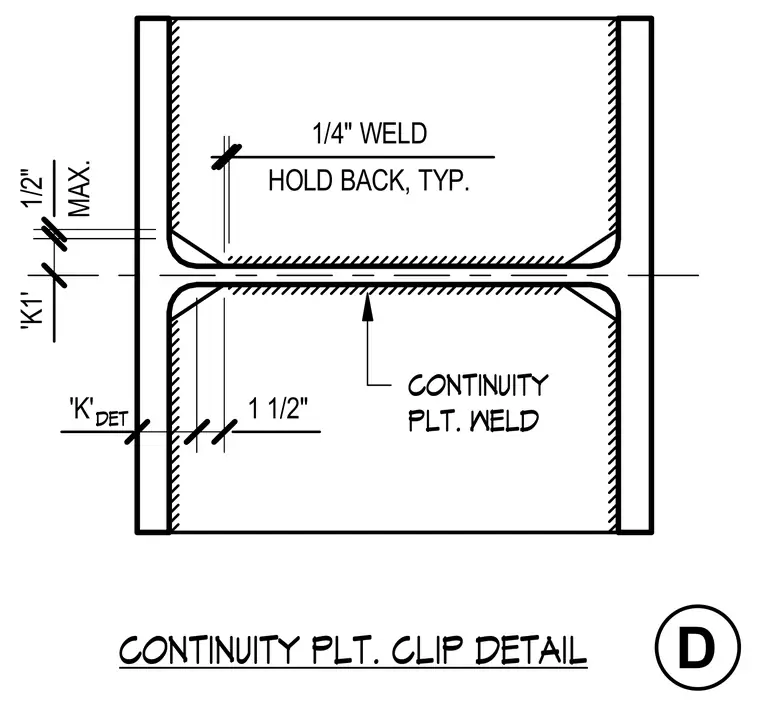

This structural steel detail shows the corner clipping requirements and weld placement for a continuity plate installed at a column web and flange intersection. The plate features a typical one-and-a-half-inch hold back from the web toe of the fillet, with a maximum distance of one-half inch governed by the 'K' dimension. A one-quarter-inch fillet weld secures the continuity plate to the supporting member flanges. Dimensional callouts indicate clear spacing limits for fabrication and fit-up near the column web zone.
'K' MAX. 1/2" 'K1' 1 1/2" HOLD BACK, TYP. 1/4" WELD CONTINUITY PLT. WELD CONTINUITY PLT. CLIP DETAIL D DET
