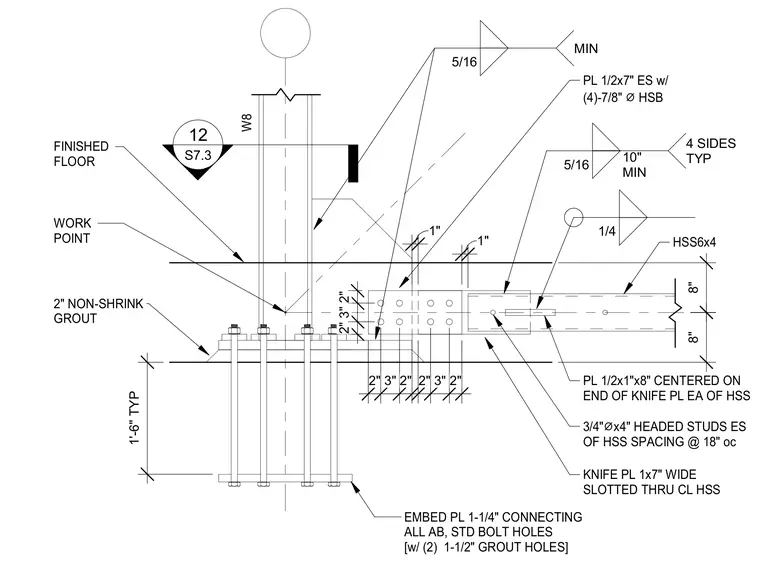

A structural detail of a buckling-restrained braced frame column base connection features an W8 column anchored by a 1-1/4 inch thick embed plate with standard anchor bolt holes and two 1-1/2 inch grout holes. A 2 inch layer of non-shrink grout sits beneath the base plate above the finished floor level. An HSS6x4 diagonal brace connects via a 1x7 inch knife plate slotted through the centerline of the HSS, with 1/2x1x8 inch plates centered on the end of the knife plate on each side of the HSS. The brace assembly uses 3/4 inch diameter by 4 inch headed studs on each side of the HSS spaced at 18 inches on center, and connects to the gusset with plates measuring 1/2x7 inches on each side secured with four 7/8 inch diameter high-strength bolts. Fillet welds of 5/16 inch and 1/4 inch sizes tie the connection elements together per the indicated dimensions.
2" NON-SHRINK GROUT W8 WORK POINT FINISHED FLOOR EMBED PL 1-1/4" CONNECTING ALL AB, STD BOLT HOLES [w/ (2) 1-1/2" GROUT HOLES] 5/16 10" MIN 4 SIDES TYP KNIFE PL 1x7" WIDE SLOTTED THRU CL HSS PL 1/2x1"x8" CENTERED ON END OF KNIFE PL EA OF HSS 3/4" ⌀ x4" HEADED STUDS ES OF HSS SPACING @ 18" oc HSS6x4 8" 2" 3" 2" 1" 8" 1" 2" 3" 2" 1'-6" TYP 12 S7.3 PL 1/2x7" ES w/ (4)-7/8" ⌀ HSB 1/4 2" 3" 2" 5/16 MIN
