Structural · S-EVG37

HSS Collector Connection at Level 2 Concrete Slab

Materials

Concrete Steel

Elements

Beams Floors / Slabs Connections / Plates

Connections

HSS Connection

About this detail

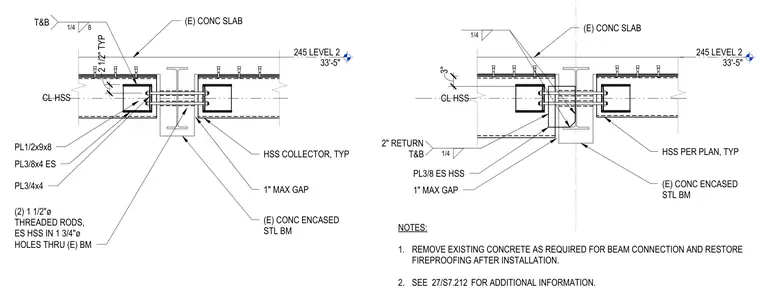

An existing concrete slab sits atop a concrete-encased steel beam with a hollow structural section collector spanning alongside it, separated by a one-inch maximum gap. Two one-and-a-half-inch diameter threaded rods pass through holes in the existing beam web to connect the hollow structural section members. Steel plates measuring three-quarters by four inches, three-eighths by four inches, and one-half by nine by eight inches tie the connection together, secured with top and bottom fillet welds. Existing concrete must be removed as required for the beam connection, with fireproofing restored after installation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
