Structural · S-EVDMW

Provide Pl 1/4"X5"Xcont

Materials

Concrete Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Walls Windows Curtain Walls Decks Arches

About this detail

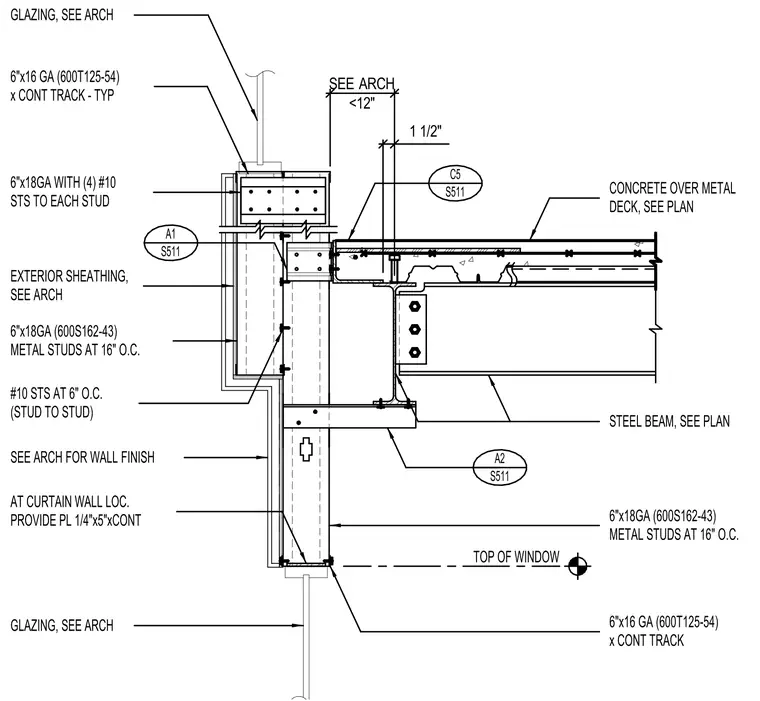

A concrete floor slab over a metal deck bears adjacent to a steel beam framed with a bolted web connection. Cold-formed steel studs measuring 6 inches by 18 gauge at 16 inches on center run vertically, bounded by continuous tracks at the head and sill. A continuous 1/4 inch by 5 inch steel plate is provided at the curtain wall location, framed with four number 10 screws to each stud. The assembly includes exterior sheathing, metal framing tracks tied with number 10 screws at 6 inches on center stud-to-stud, and window glazing located below the top of the window line.
