Structural · S-EVCAP

Dunnage Platform Post Over Roof Beam

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Roofs Floors / Slabs Decks

Connections

HSS Connection Bolted Connection

About this detail

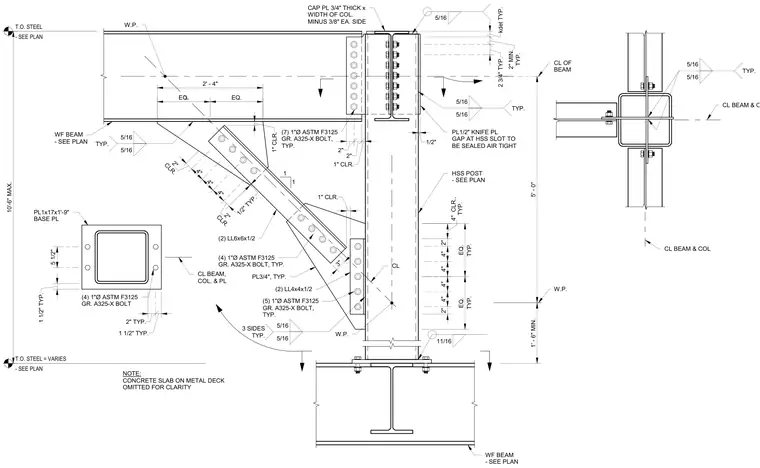

A hollow structural section post connects to a wide-flange support beam using a one-half-inch thick knife plate inserted into a slotted end of the post, with the gap sealed airtight. Double angle braces composed of two LL6x6x1/2 angles and two LL4x4x1/2 angles tie the post back to the wide-flange beam, secured by one-inch diameter ASTM F3125 Grade A325-X bolts. A three-quarter-inch thick cap plate tops the hollow structural section post, welded with five-sixteenth-inch fillet welds. The base of the post assembly transfers loads down to the lower wide-flange beam through a one-inch thick base plate fastened with four one-inch diameter bolts. A concrete slab on metal deck is omitted for clarity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
