Structural · S-EV8Y9

Typical Concrete Footing Section and Reinforcement Notes

Materials

Concrete Reinforced Concrete Steel

Elements

Walls Foundations / Footings Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Embed Plate

About this detail

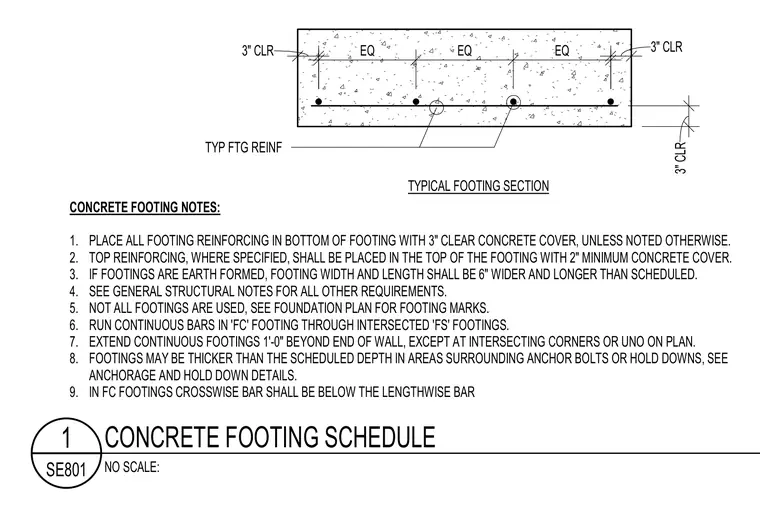

A typical concrete footing section detailing the placement of bottom and top reinforcing bars with specified three-inch and two-inch clear concrete cover. The drawing provides nine specific concrete footing notes outlining requirements for earth-formed footings, continuous bar placements in intersected footings, extensions beyond wall ends, and crosswise bar orientation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
