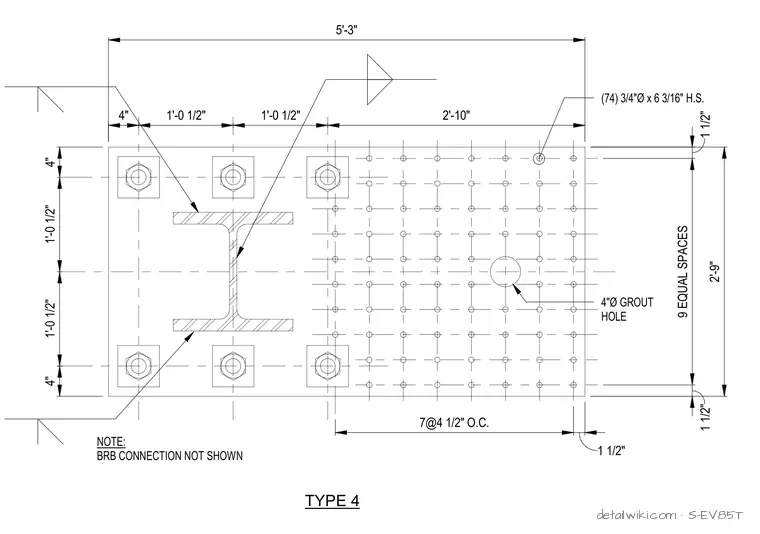

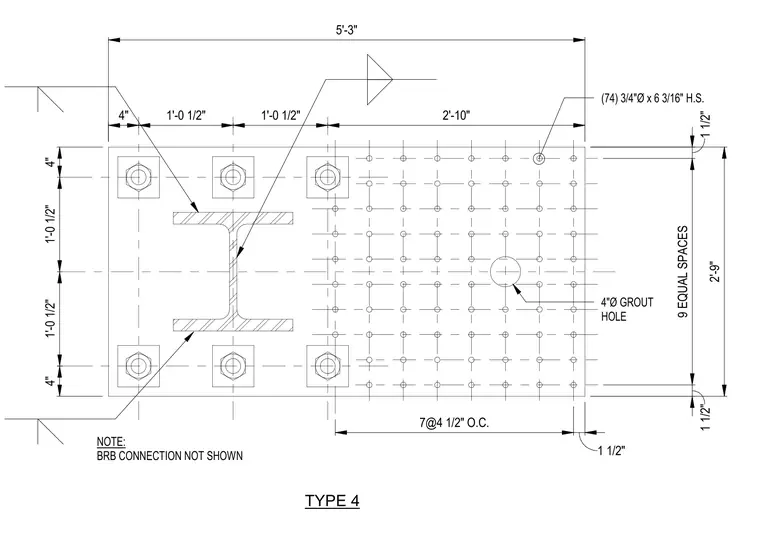

This structural embedment detail shows a steel plate measuring five feet three inches by two feet nine inches, anchored with seventy-four three-quarter-inch diameter by six and three-sixteenth-inch head studs spaced at seven intervals of four and one-half inches on center along the length and nine equal spaces across the width. A structural steel shape with flanges and web connects to the embedded plate. A four-inch diameter grout hole is positioned within the plate layout. A note specifies that the buckling-restrained braced frame connection is not shown.
4" 1'-0 1/2" 1'-0 1/2" 2'-10" 4" 1'-0 1/2" 1'-0 1/2" 4" 5'-3" 2'-9" TYPE 4 1 1/2" 9 EQUAL SPACES 1 1/2" 7@4 1/2" O.C. 1 1/2" (74) 3/4"Ø x 6 3/16" H.S. NOTE: BRB CONNECTION NOT SHOWN 4"Ø GROUT HOLE
