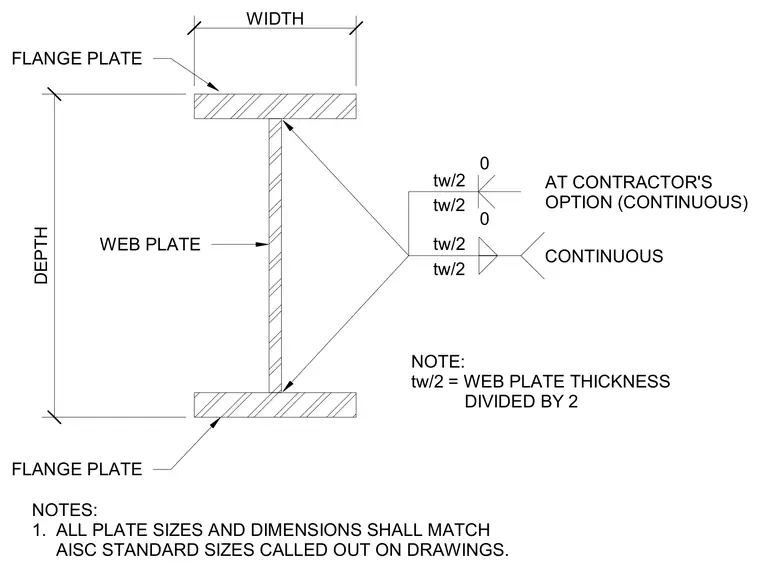

This structural steel diagram details the weld configurations and plate dimensions for a fabricated member consisting of a central web plate and top and bottom flange plates. The drawing specifies continuous welds along the plate junctions with thickness criteria calculated as half the web plate thickness. All plate sizes and dimensions must match American Institute of Steel Construction standard sizes called out on the structural drawings, with certain weld options left at the contractor's discretion.
AT CONTRACTOR'S OPTION (CONTINUOUS) 0 0 NOTES: 1. ALL PLATE SIZES AND DIMENSIONS SHALL MATCH AISC STANDARD SIZES CALLED OUT ON DRAWINGS. WEB PLATE FLANGE PLATE FLANGE PLATE NOTE: tw/2 = WEB PLATE THICKNESS DIVIDED BY 2 DEPTH WIDTH tw/2 tw/2 CONTINUOUS tw/2 tw/2
