Structural · S-EV5P6

Elevator Pop-Up Framing Detail

Materials

Elements

Columns Beams Roofs Decks Connections / Plates

About this detail

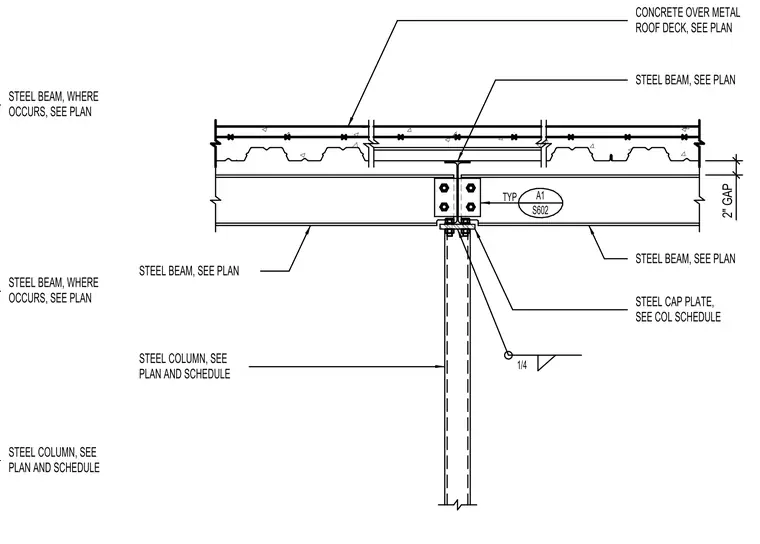

A vertical steel column supports intersecting steel beams sized per plan with a steel cap plate matching the column schedule. A quarter-inch fillet weld secures the connection components at the column top. Steel framing carries a concrete over metal roof deck with a two-inch gap maintained between structural elements. Beams continue where specified in the structural plans.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
