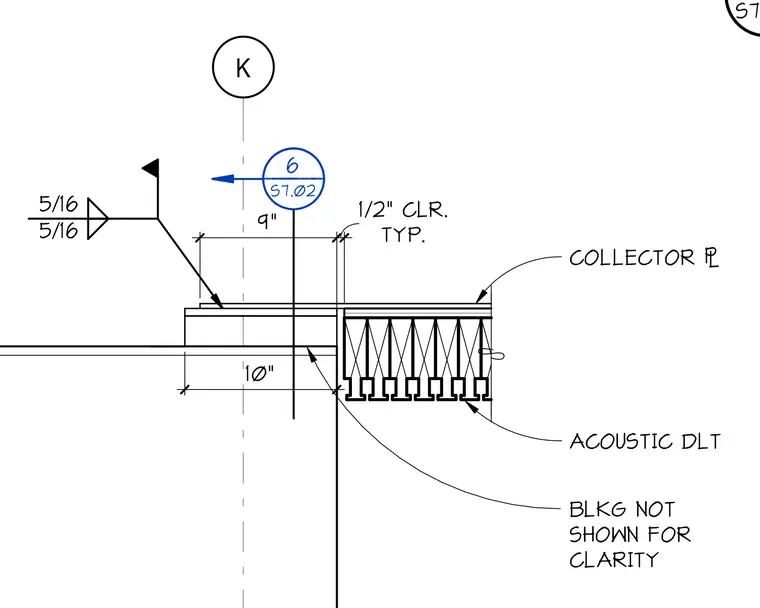

A collector plate bears near grid line K, adjacent to an acoustic deck assembly. Five-sixteenths inch fillet welds secure the connection assembly. A half-inch typical clearance is maintained at the joint, with blocking omitted for clarity. Dimensions indicate a ten-inch vertical dimension and a nine-inch horizontal spacing.
COLLECTOR * K ACOUSTIC DLT 6 S7.02 6██████████ 6██████████ 6███████████████ ██████████6 ██████████6 ██████████6 ██████████6 5/16 5/16 10" 9" TYP. 1/2" CLR. BLKG NOT SHOWN FOR CLARITY S7.02
