Reinforced Concrete Dowel Bar Splicer Designations and Types

Materials

Reinforced Concrete

Elements

Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

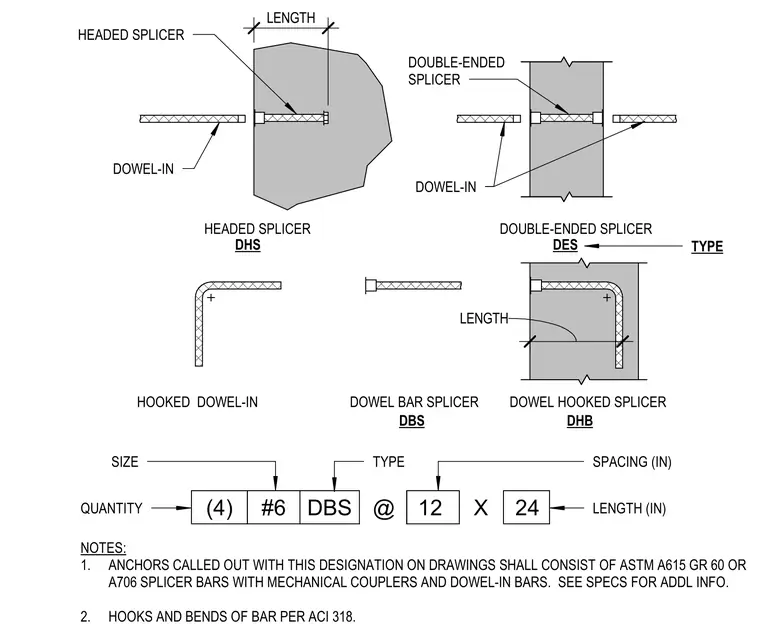

Anchors indicated by the designation consist of ASTM A615 Grade 60 or A706 splicer bars with mechanical couplers and dowel-in bars. Hooks and bends of reinforcing bars comply with ACI 318 standards. The callout format specifies quantity, size, type, spacing, and length, illustrated through various configurations including headed splicers, double-ended splicers, hooked dowel-ins, and dowel hooked splicers.
