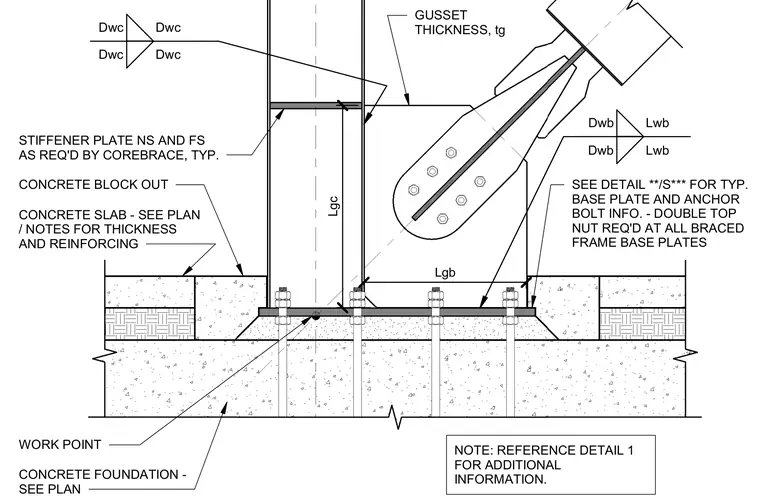

A structural steel column bears on a base plate anchored to a concrete foundation with anchor bolts and double top nuts. A gusset plate connects the brace to the column, supported by stiffener plates on the near side and far side as required by the manufacturer. A concrete blockout surrounds the base plate within the surrounding concrete slab. Additional anchor bolt and base plate information is referenced on a separate detail sheet.
WORK POINT CONCRETE FOUNDATION - SEE PLAN CONCRETE BLOCK OUT STIFFENER PLATE NS AND FS AS REQ'D BY COREBRACE, TYP. CONCRETE SLAB - SEE PLAN / NOTES FOR THICKNESS AND REINFORCING GUSSET THICKNESS, tg NOTE: REFERENCE DETAIL 1 FOR ADDITIONAL INFORMATION. Dwc Dwc Dwc Dwc Dwb Lwb Dwb Lwb Lgc Lgb SEE DETAIL **/S*** FOR TYP. BASE PLATE AND ANCHOR BOLT INFO. - DOUBLE TOP NUT REQ'D AT ALL BRACED FRAME BASE PLATES
