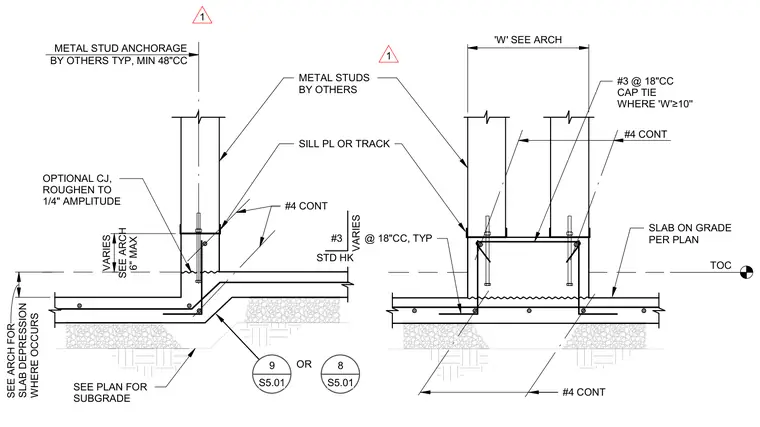

Cold-formed metal studs bear on a sill plate or track anchored to a concrete slab on grade with a variable slab depression. Continuous number four reinforcing bars run horizontally within the curb, tied with number three bars spaced at eighteen inches on center. An optional control joint with a roughened surface of quarter-inch amplitude is provided where indicated. Metal stud anchorage and metal studs are supplied by others, with minimum forty-eight inches on center spacing. Cap ties of number three bars at eighteen inches on center are added where dimension W is greater than or equal to ten feet.
9 S5.01 8 S5.01 SILL PL OR TRACK #3 @ 18"CC, TYP #4 CONT #4 CONT SLAB DEPRESSION WHERE OCCURS METAL STUDS BY OTHERS #3 @ 18"CC CAP TIE WHERE 'W'≥10'' VARIES STD HK SEE PLAN FOR SUBGRADE OPTIONAL CJ, ROUGHEN TO 1/4" AMPLITUDE 6" MAX SLAB ON GRADE PER PLAN SEE ARCH VARIES 'W' SEE ARCH OR TOC SEE ARCH FOR #4 CONT 1 1 METAL STUD ANCHORAGE BY OTHERS TYP, MIN 48"CC BLOCKOUT
