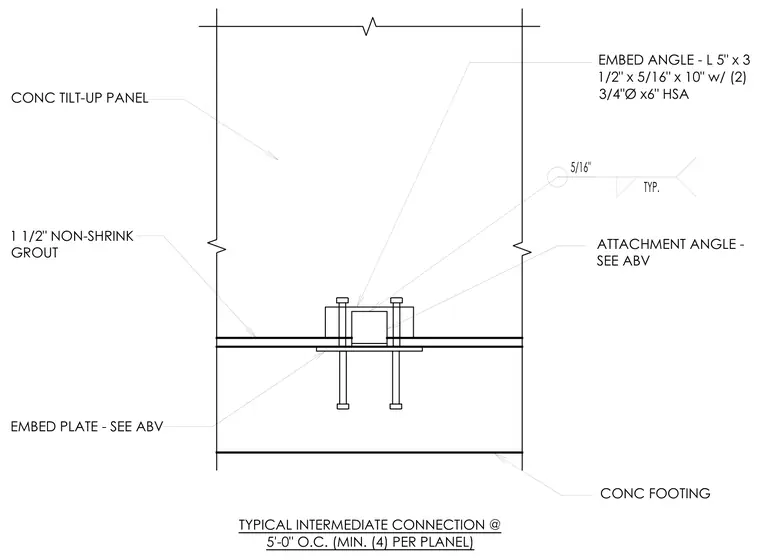

A concrete tilt-up wall panel bears on a concrete footing with one and one-half inches of non-shrink grout beneath the panel. An embed plate anchors into the footing, secured by two three-quarter-inch diameter by six-inch HSA anchors. A five-inch by three-and-a-half-inch by five-sixteenths-inch by ten-inch attachment angle connects to the embed assembly with a typical five-sixteenths-inch fillet weld. This intermediate connection occurs at five feet on center, with a minimum of four connections per panel.
TYPICAL INTERMEDIATE CONNECTION @ 5'-0" O.C. (MIN. (4) PER PLANEL) TYP. 5/16" ATTACHMENT ANGLE - SEE ABV EMBED ANGLE - L 5" x 3 1/2" x 5/16" x 10" w/ (2) 3/4"Ø x6" HSA EMBED PLATE - SEE ABV 1 1/2" NON-SHRINK GROUT CONC TILT-UP PANEL CONC FOOTING
