A wide-flange beam frames into a concrete column with a steel embed plate. The embed plate measures 1/2 inch by 10 inches by 1 foot 4 inches at a W18 beam with six 3/4-inch diameter by 10-inch long headed studs, or 1/2 inch by 10 inches by 1 foot 10 inches at a W24 beam with eight 3/4-inch diameter by 10-inch long headed studs. The embed plate is bent to match the column curvature per drawing notes. A composite deck per plan bears adjacent to the column above the structural connection.

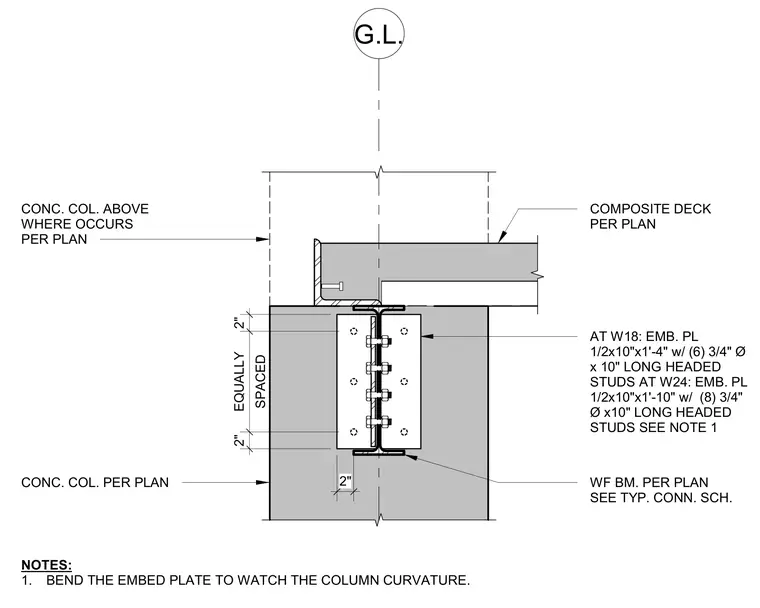

G.L. 2" SPACED EQUALLY 2" 2" COMPOSITE DECK PER PLAN AT W18: EMB. PL 1/2x10"x1'-4" w/ (6) 3/4" Ø x 10" LONG HEADED STUDS AT W24: EMB. PL 1/2x10"x1'-10" w/ (8) 3/4" Ø x10" LONG HEADED STUDS SEE NOTE 1 NOTES: 1. BEND THE EMBED PLATE TO WATCH THE COLUMN CURVATURE. WF BM. PER PLAN SEE TYP. CONN. SCH. CONC. COL. PER PLAN CONC. COL. ABOVE WHERE OCCURS PER PLAN
