Structural · S-ET8MY

Concrete Beam to Wall Intersection with Crosstie Reinforcing

Materials

Elements

About this detail

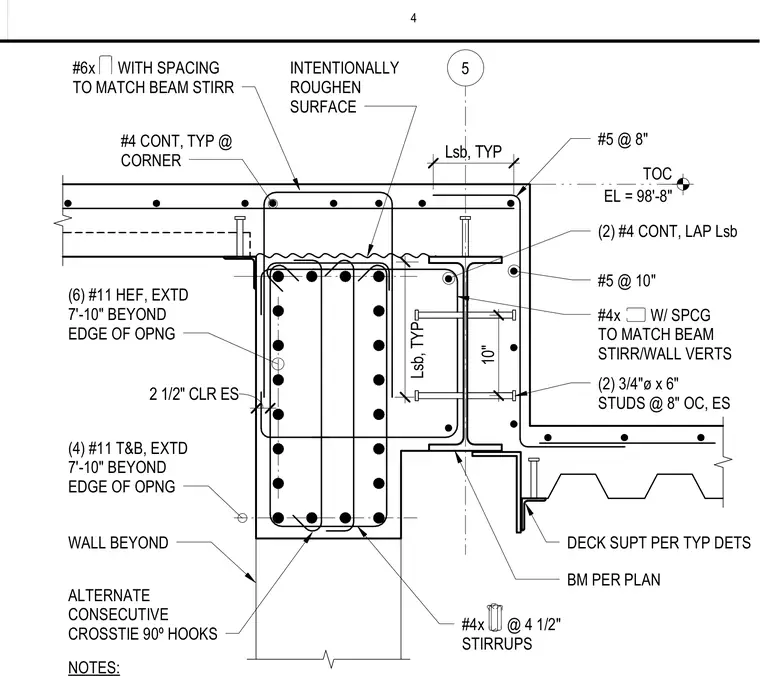

A cast-in-place concrete beam intersects a reinforced concrete wall with an embedded steel beam connection. The wall assembly features continuous number eleven top and bottom bars extending seven feet ten inches beyond the edge of the opening, alongside vertical number five bars spaced at eight inches and ten inches. The concrete surface at the beam interface is intentionally roughened. The concrete beam is detailed with number four stirrups at four and one half inches spacing, alternate consecutive crosstie ninety degree hooks, and two continuous number four bars with lap splices. Two three quarter inch diameter by six inch shear studs are welded at eight inches on center each side. The steel beam flange is supported by deck details per typical standards and anchored with number six bars matching the beam stirrup spacing.
