Structural · S-ET2EJ

Equipment Concrete Housekeeping Pad Reinforcement and Doweling Detail

Materials

Concrete Reinforced Concrete

Elements

Floors / Slabs Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

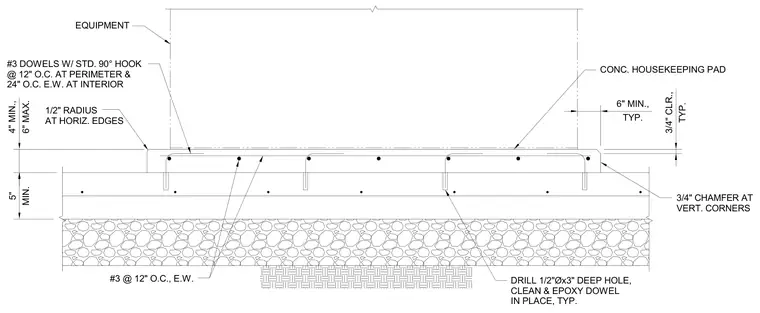

An equipment housekeeping pad sits atop a structural concrete slab, anchored by half-inch diameter by three-inch deep drilled holes cleaned and set with epoxy dowels typically placed throughout. The pad features number three dowels with standard ninety-degree hooks spaced at twelve inches on center at the perimeter and twenty-four inches on center each way at the interior. Internal reinforcement consists of number three bars at twelve inches on center each way with three-quarters of an inch clearance typical. The pad edges receive a half-inch radius at horizontal edges and a three-quarter-inch chamfer at vertical corners. A minimum thickness of four to six inches is maintained, bearing on a five-inch minimum structural concrete slab.
