Structural · S-ESV4Z

Elevator Basis of Design Loading Information

Elements

About this detail

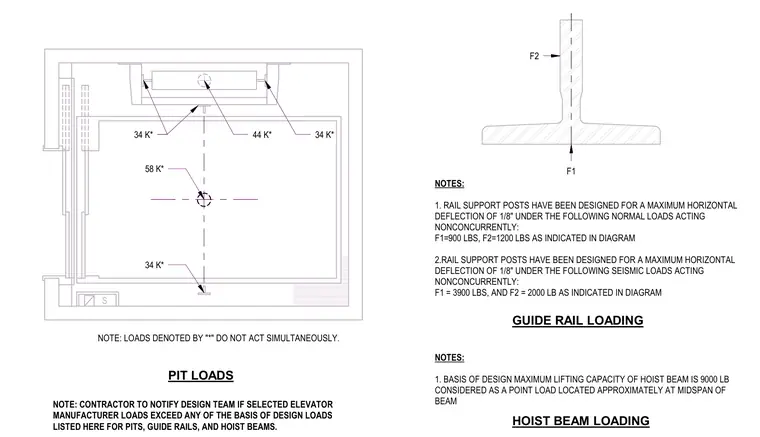

Elevator basis of design loading criteria diagram indicating pit loads, guide rail loads, and hoist beam lifting capacities. Rail support posts are designed for a maximum horizontal deflection of one-eighth inch under normal loads of nine hundred pounds and twelve hundred pounds, and seismic loads of thirty-nine hundred pounds and two thousand pounds acting nonconcurrently. The maximum lifting capacity of the hoist beam is nine thousand pounds considered as a point load located approximately at midspan. The contractor must notify the design team if the selected elevator manufacturer loads exceed any of the basis of design loads listed for pits, guide rails, and hoist beams.
