A 4x12 number one Douglas Fir continuous ledger attaches to the wall using four 3/4-inch diameter anchor bolts at each purlin and spaced at 24 inches on center, starting bolts 8 inches from the end. A Simpson HPA28 wall anchor fastens to each purlin with twenty 10d common nails and extends into the wall with continuous #5 reinforcing bars. The purlin rests in a Simpson "W" hanger supported by the ledger. An extra layer of 90-pound felt covers the exposed steel strap or equivalent per roofer's recommendation.

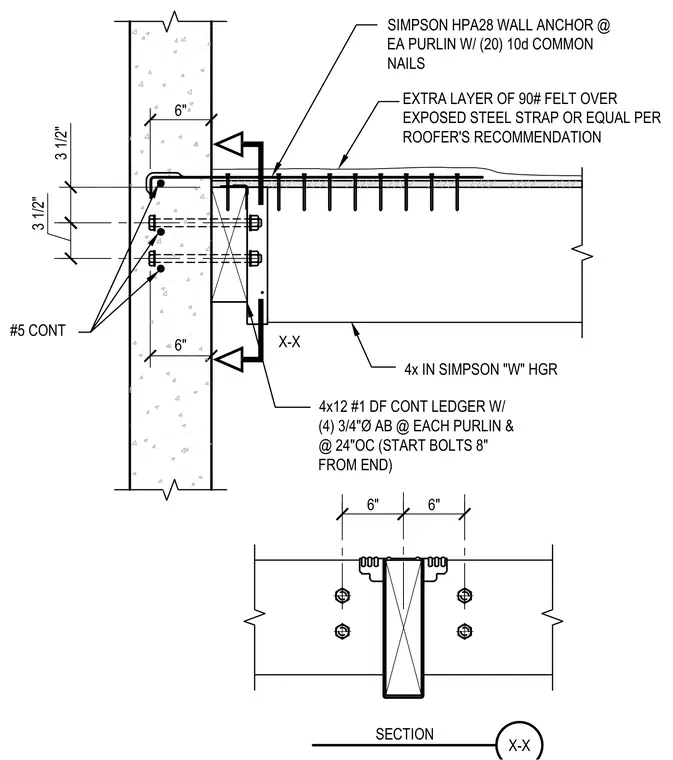

6" 3 1/2" 3 1/2" SIMPSON HPA28 WALL ANCHOR @ EA PURLIN W/ (20) 10d COMMON NAILS 4x12 #1 DF CONT LEDGER W/ (4) 3/4"Ø AB @ EACH PURLIN & @ 24"OC (START BOLTS 8" FROM END) 4x IN SIMPSON "W" HGR 6" #5 CONT 6" 6" X-X SECTION X-X EXTRA LAYER OF 90# FELT OVER EXPOSED STEEL STRAP OR EQUAL PER ROOFER'S RECOMMENDATION
