Structural · S-ES9JC

Davit Post Connection to Steel Beam

Materials

Concrete

Elements

Columns Beams Decks

Connections

Welded Connection Bolted Connection

About this detail

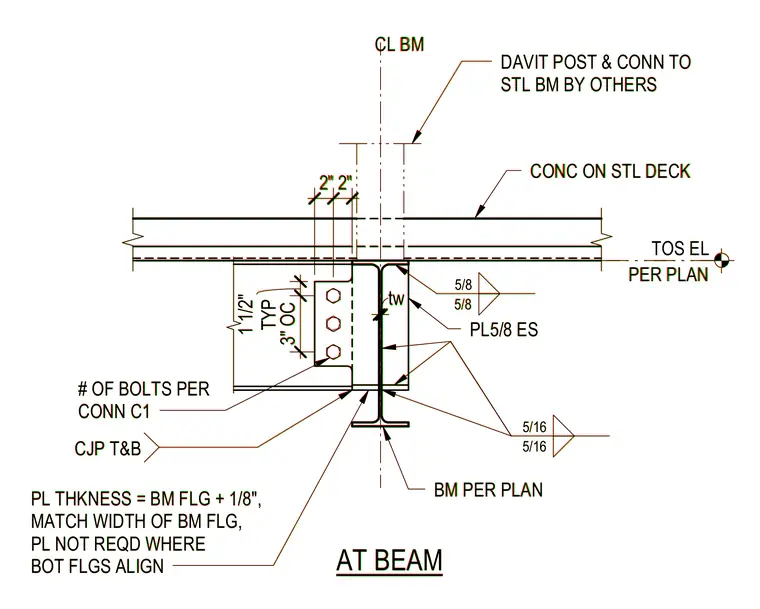

A davit post connects to a structural steel beam supporting a concrete-on-steel-deck floor system with a top-of-steel elevation sized per plan. The connection utilizes a five-eighths-inch plate on each side, welded with five-eighths-inch fillet welds and complete joint penetration welds at the top and bottom. A bolted connection using three-inch on-center spacing secures the framing, with plate thickness equal to the beam flange plus one-eighth inch and matching the flange width where required.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
