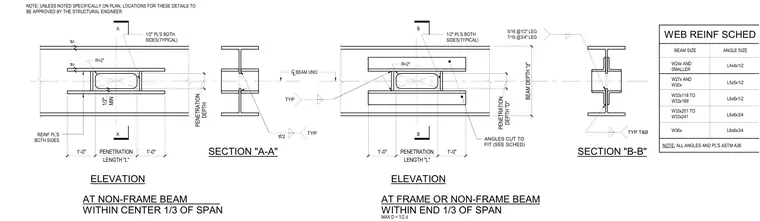

This structural detail shows rectangular web penetrations in steel wide-flange beams with reinforcement plates on both sides and top and bottom angles cut to fit per the included web reinforcement schedule. The penetration has a maximum depth of one-half the beam depth and a minimum one-inch corner radius. Reinforcing plates and angles are specified as ASTM A36 steel with fillet welds sized according to the member dimensions. Separate conditions are detailed for non-frame beams within the center one-third of the span and for frame or non-frame beams within the end one-third of the span. All angles and plates require structural engineer approval unless specifically noted otherwise on plan.
1/2" PL'S BOTH SIDES(TYPICAL) 5/16 @1/2" LEG 7/16 @3/4" LEG B B A A ELEVATION AT NON-FRAME BEAM WITHIN CENTER 1/3 OF SPAN SECTION "A-A" ELEVATION SECTION "B-B" WEB REINF SCHED MAX D = 1/2 d NOTE: ALL ANGLES AND PL'S ASTM A36 W33x201 TO W33x241 W33x118 TO W33x169 W36x L6x6x3/4 L6x6x3/4 L6x6x1/2 W27x AND W30x W24x AND SMALLER BEAM SIZE ANGLE SIZE L4x4x1/2 L5x5x1/2 BEAM UNO ANGLES CUT TO FIT (SEE SCHED) REINF PL'S BOTH SIDES tf/2 TYP TYP TYP T&B DEPTH PENETRATION 1'-0" LENGTH "L" PENETRATION 1'-0" tf tf MIN 1/2". 1'-0" LENGTH "L" PENETRATION 1'-0" R=2" R=2" DEPTH "D" PENETRATION BEAM DEPTH "d" AT FRAME OR NON-FRAME BEAM WITHIN END 1/3 OF SPAN 1/2" PL'S BOTH SIDES(TYPICAL) NOTE: UNLESS NOTED SPECIFICALLY ON PLAN, LOCATIONS FOR THESE DETAILS TO BE APPROVED BY THE STRUCTURAL ENGINEER
