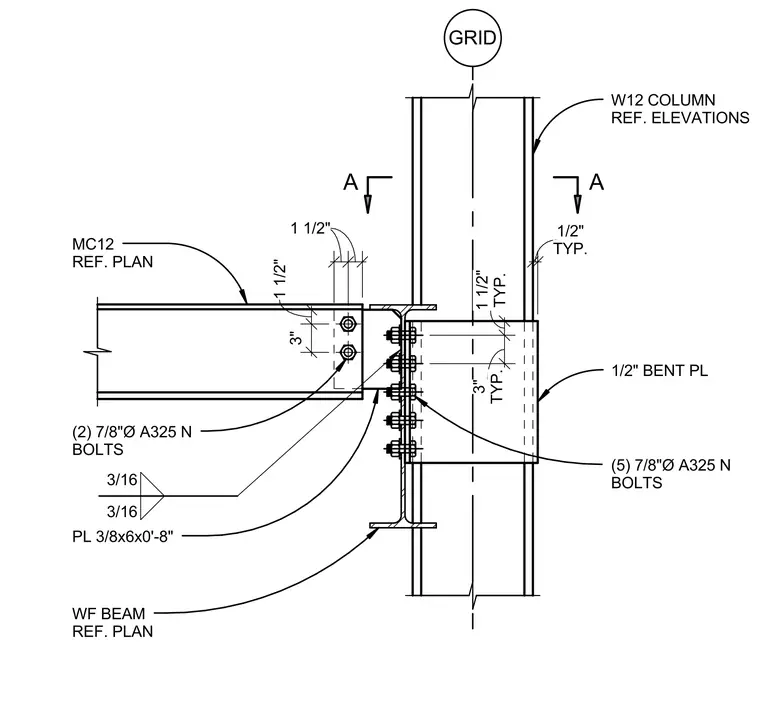

An MC12 channel beam frames into a W12 column via a 3/8-inch by 6-inch by 0-foot-8-inch plate welded with 3/16-inch fillet welds. The beam web connects to the plate with two 7/8-inch-diameter ASTM A325-N bolts. The opposite side of the column flange ties into a 1/2-inch bent plate secured with five 7/8-inch-diameter ASTM A325-N bolts. A wide-flange beam also frames into the lower portion of the column per plan.
GRID MC12 REF. PLAN . 1 1/2" 3" 1 1/2" TYP. 1 1/2" TYP. 3" TYP. 1/2" (2) 7/8"Ø A325 N BOLTS 3/16 3/16 PL 3/8x6x0'-8" WF BEAM REF. PLAN W12 COLUMN REF. ELEVATIONS 1/2" BENT PL (5) 7/8"Ø A325 N BOLTS A A
