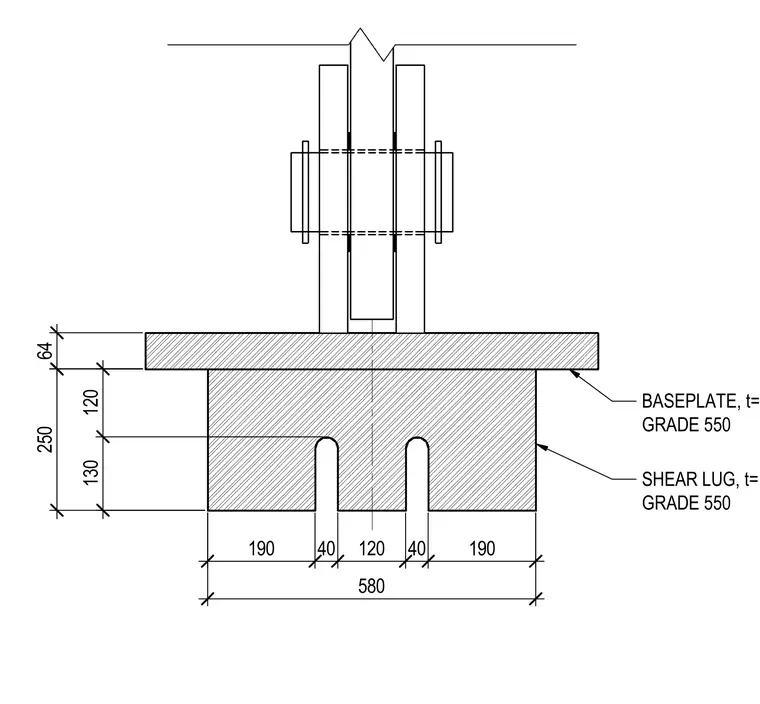

A steel base plate connection incorporates a welded shear lug for lateral load transfer. The assembly consists of a base plate with a thickness of 64 millimeters fabricated from Grade 550 steel. A matching shear lug of 64 millimeter thickness and Grade 550 steel is welded to the underside of the base plate, featuring a total width of 580 millimeters with specific slot and spacing dimensions indicated. Vertical structural elements are connected above the base plate using a bolted joint assembly.
190 40 120 40 190 130 120 250 64 580 BASEPLATE, t=64 GRADE 550 SHEAR LUG, t=64 GRADE 550
