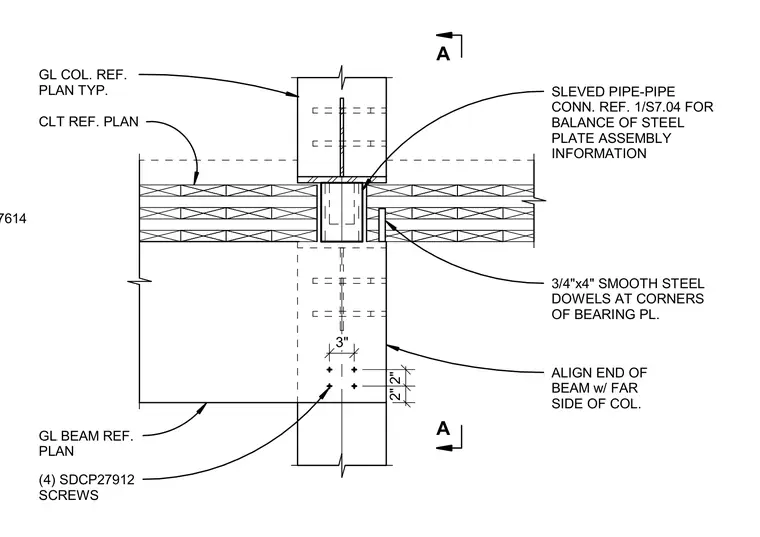

A glulam beam connects to a glulam column supporting a cross-laminated timber floor plate. The end of the glulam beam aligns with the far side of the column and is secured using four SDCP27912 structural screws. A sleeved pipe-to-pipe connection is integrated at the intersection, with three-quarter-inch by four-inch smooth steel dowels positioned at the corners of the bearing plate.
A A SLEVED PIPE-PIPE CONN. REF. 1/S7.04 FOR BALANCE OF STEEL PLATE ASSEMBLY INFORMATION GL BEAM REF. PLAN (4) SDCP27912 SCREWS 2" 2" 3" GL COL. REF. PLAN TYP. CLT REF. PLAN ALIGN END OF BEAM w/ FAR SIDE OF COL. 3/4"x4" SMOOTH STEEL DOWELS AT CORNERS OF BEARING PL. (13) SDCP27614
