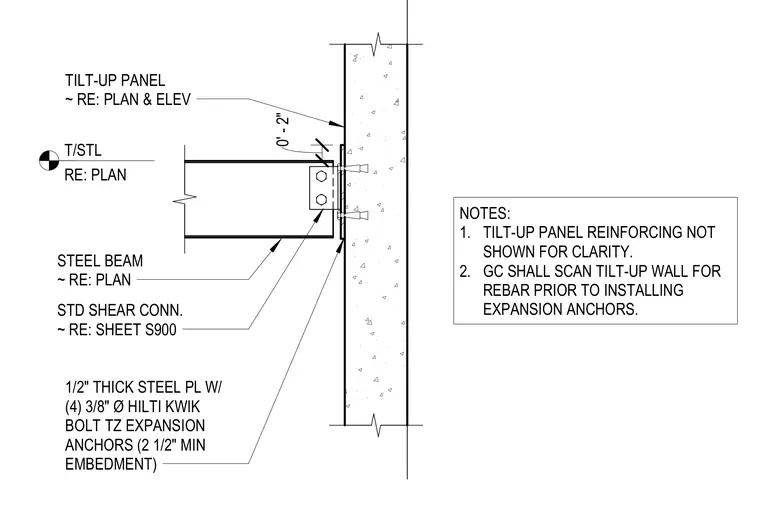

A structural steel beam connects to a reinforced concrete tilt-up wall panel using a half-inch thick steel plate secured by four 3/8-inch diameter Hilti Kwik Bolt TZ expansion anchors with a 2-1/2 inch minimum embedment. A standard shear connection links the beam to the anchored steel plate. The general contractor must scan the tilt-up wall for rebar prior to installing the expansion anchors.
1/2" THICK STEEL PL W/ (4) 3/8" Ø HILTI KWIK BOLT TZ EXPANSION ANCHORS (2 1/2" MIN EMBEDMENT) TILT-UP PANEL ~ RE: PLAN & ELEV STEEL BEAM ~ RE: PLAN NOTES: 1. TILT-UP PANEL REINFORCING NOT SHOWN FOR CLARITY. 2. GC SHALL SCAN TILT-UP WALL FOR REBAR PRIOR TO INSTALLING EXPANSION ANCHORS. STD SHEAR CONN. ~ RE: SHEET S900 T/STL RE: PLAN 0' - 2"
