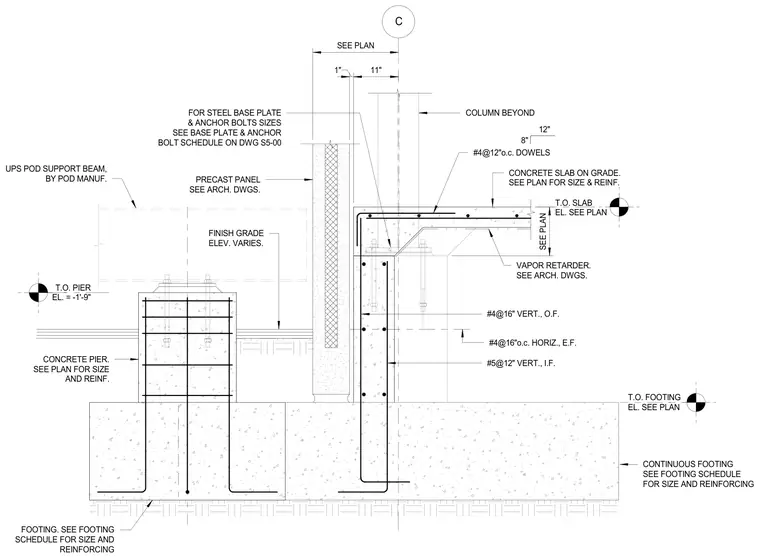

A continuous concrete footing supports a reinforced concrete pier, a foundation wall, and a slab on grade. The continuous footing includes horizontal and vertical reinforcing bars sized per the footing schedule. A concrete pier with vertical and horizontal reinforcing dowels anchors a steel base plate and anchor bolts, while a separate UPS pod support beam spans above. A concrete slab on grade rests on a vapor retarder adjacent to a precast architectural wall panel and finish grade.
C FINISH GRADE ELEV. VARIES. T.O. SLAB EL. SEE PLAN PRECAST PANEL SEE ARCH. DWGS. #4@12"o.c. DOWELS VAPOR RETARDER. SEE ARCH. DWGS. CONTINUOUS FOOTING SEE FOOTING SCHEDULE FOR SIZE AND REINFORCING #4@16"o.c. HORIZ., E.F. CONCRETE PIER. SEE PLAN FOR SIZE AND REINF. FOR STEEL BASE PLATE & ANCHOR BOLTS SIZES SEE BASE PLATE & ANCHOR BOLT SCHEDULE ON DWG S5-00 COLUMN BEYOND CONCRETE SLAB ON GRADE. SEE PLAN FOR SIZE & REINF. SEE PLAN 8" 12" #4@16" VERT., O.F. #5@12" VERT., I.F. SEE PLAN 1" 11" T.O. FOOTING EL. SEE PLAN T.O. PIER EL. = -1'-9" FOOTING. SEE FOOTING SCHEDULE FOR SIZE AND REINFORCING UPS POD SUPPORT BEAM, BY POD MANUF.
