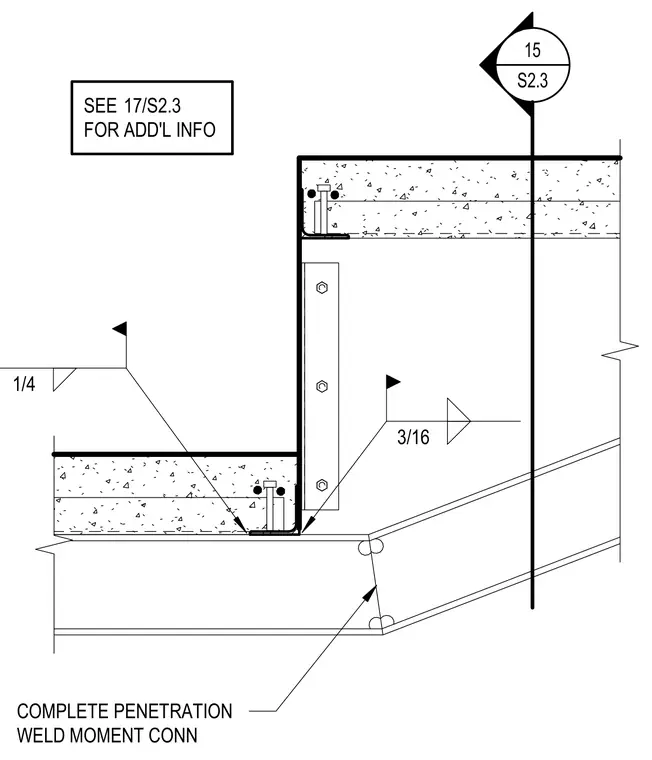

A complete penetration weld moment connection joins steel framing elements. The assembly includes welded connections with three-sixteenths inch and one-quarter inch fillet welds. Additional information is referenced on sheet S2.3 detail 17.
SEE FOR ADD'L INFO 15 S2.3 COMPLETE PENETRATION WELD MOMENT CONN 3/16 1/4 17/S2.3
