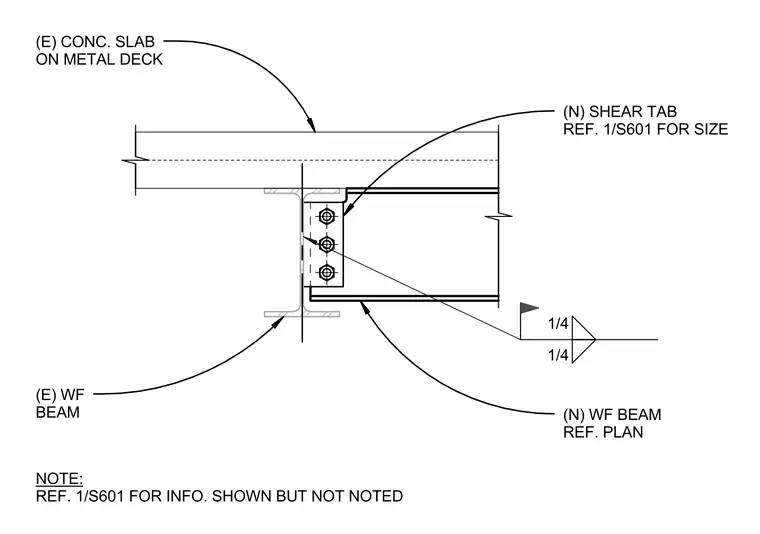

A new wide flange beam frames into the web of an existing wide flange beam via a single plate shear connection with three bolts. The shear tab size is referenced on the drawings, and the new beam size is per plan. A one-quarter inch fillet weld secures the connection, and a concrete slab on metal deck bears above the supporting assembly.
(N) WF BEAM REF. PLAN (N) SHEAR TAB REF. 1/S601 FOR SIZE (E) WF BEAM (E) CONC. SLAB ON METAL DECK NOTE: REF. 1/S601 FOR INFO. SHOWN BUT NOT NOTED 1/4 1/4
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
