An overhead exhaust hood is suspended using P1000HS Unistrut channels and a minimum of six three-eighths-inch hanger rods equipped with stiffeners. P1000 transverse bracing is provided at both ends of the hood support on each side. The assembly accommodates varying lengths of forty-two inches for hood B20 and sixty-three inches for hood B1, supporting a maximum load of four hundred fifty pounds. Alignment is maintained relative to the adjacent wall per architectural drawings.

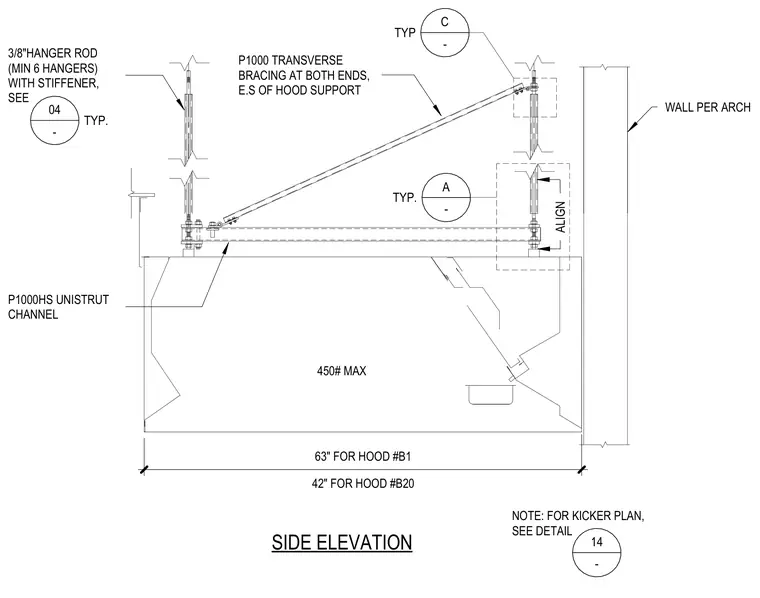

SIDE ELEVATION P1000 TRANSVERSE BRACING AT BOTH ENDS, E.S OF HOOD SUPPORT 3/8"HANGER ROD (MIN 6 HANGERS) WITH STIFFENER, SEE 04 - TYP. P1000HS UNISTRUT CHANNEL 42" FOR HOOD #B20 63" FOR HOOD #B1 450# MAX WALL PER ARCH ALIGN C - TYP A - TYP. NOTE: FOR KICKER PLAN, SEE DETAIL 14 -
